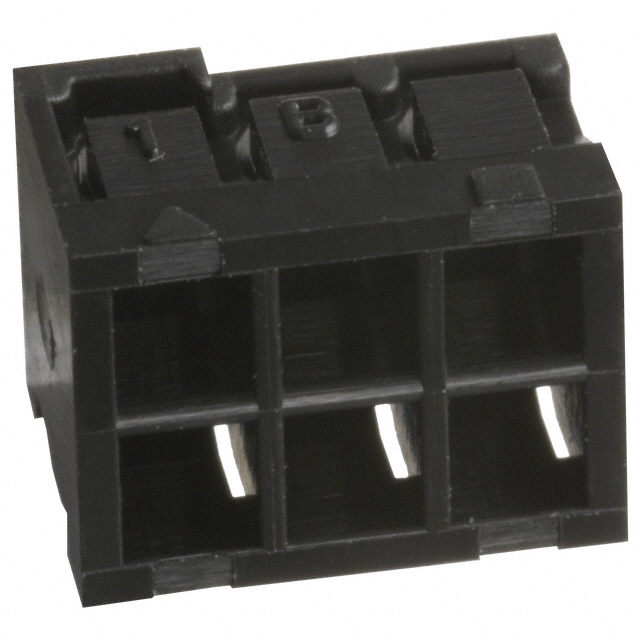

DF4-6DP-2C
LTBHirose Electric USA, Inc.
CONN HSG CRIMP 6POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF4-6DP-2C
LTBHirose Electric USA, Inc.
CONN HSG CRIMP 6POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF4-6DP-2C |
|---|---|
| Board-Side Pitch | 0.079 in |
| Board-Side Pitch | 2 mm |
| Cable Pitch | 0.079 in |
| Cable Pitch | 2 mm |
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Housing |
| Features | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
DF4-6 Series
| Part | Number of Rows | Cable Pitch | Cable Pitch | Features | Connector Type | Number of Positions | Cable Termination | Board-Side Pitch | Board-Side Pitch | Row Spacing | Row Spacing | Color | Contact Finish | Mounting Type | Wire Gauge | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | 2 | 0.079 in | 2 mm | Contacts Not Included | Housing | 6 | Crimp | 0.079 in | 2 mm | 2 mm | 0.079 in | Black | ||||
Hirose Electric USA, Inc. | 1 | 0.079 in | 2 mm | Closed End | Individual Wires | 6 | IDC | 0.079 in | 2 mm | Black | Tin | Through Hole | 26 AWG | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.20 | |
Description
General part information
DF4-6 Series
6 Position Housing Connector Black Crimp
