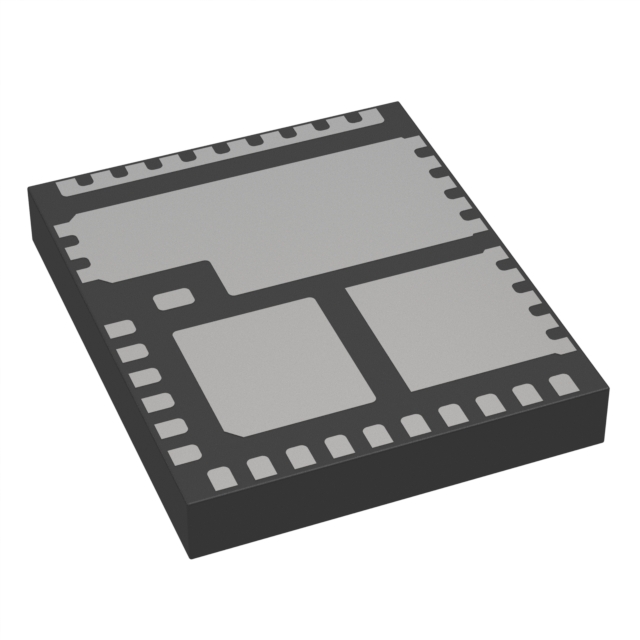

MP86956GMJ-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC HALF BRIDGE DRIVER 70A 41LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP86956GMJ-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC HALF BRIDGE DRIVER 70A 41LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP86956GMJ-P |
|---|---|
| Applications | Buck Converters |
| Current - Output / Channel [custom] | 70 A |
| Current - Peak Output | 125 A |
| Fault Protection | UVLO, Over Temperature, Current Limiting, Short Circuit |
| Features | Status Flag, Diode Emulation, Bootstrap Circuit |
| Interface | PWM |
| Load Type | Inductive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 41-PowerVFLGA |
| Technology | NMOS |
| Voltage - Load [Max] | 16 V |
| Voltage - Load [Min] | 3 V |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.94 | |
| 10 | $ 5.34 | |||
| 25 | $ 5.04 | |||
| 100 | $ 4.37 | |||
| 250 | $ 4.15 | |||
| Digi-Reel® | 1 | $ 5.94 | ||
| 10 | $ 5.34 | |||
| 25 | $ 5.04 | |||
| 100 | $ 4.37 | |||
| 250 | $ 4.15 | |||
| Tape & Reel (TR) | 500 | $ 3.72 | ||
| 1000 | $ 3.14 | |||
| 2500 | $ 2.98 | |||
Description
General part information
MP86956 Series
Half Bridge Driver Buck Converters NMOS 41-LGA (5x6)
