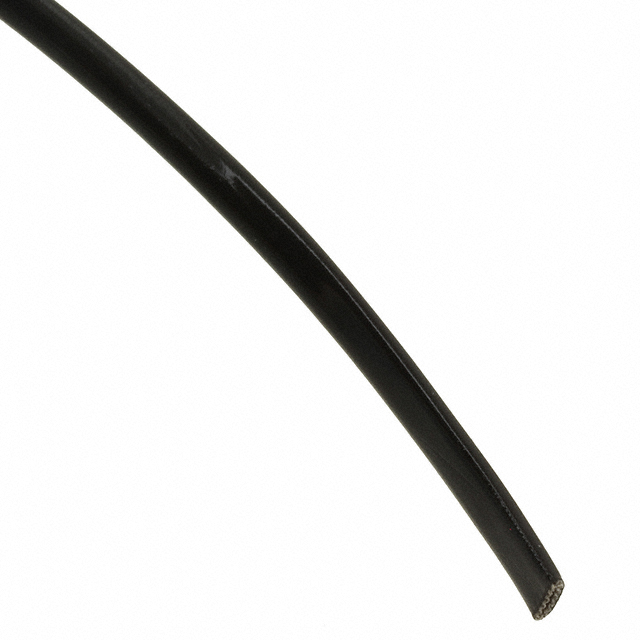

PF13012 BK002

Active

ALPHA WIRE

PIF13012 BLACK 500 FT ROHS COMPLIANT: NO

Search across all available documentation for this part.

Active

ALPHA WIRE

PIF13012 BLACK 500 FT ROHS COMPLIANT: NO

Technical Specifications

Parameters and characteristics for this part

Specification	PF13012 BK002

Abrasion Protection	Abrasion Resistant, Fray Resistant
Color	Black
Diameter - Inside [diameter]	0.081 in
Diameter - Inside [diameter]	2.06 mm
Environment Protection	Corrosion Resistant
Heat Protection	Heat Resistant
Length [x]	500 '
Length [x]	152.4 m
Liquid Protection	Oil Resistant
Material	Fiberglass, PVC Coated
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Type	Sleeving, Insulated
Type Attributes	Convoluted - Braided
Wall Thickness	0.38 mm
Wall Thickness	0.015 in

Part	Color	Heat Protection	Abrasion Protection	Type Attributes	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material Flammability Rating	Material	Length [x]	Length [x]	Liquid Protection	Environment Protection	Wall Thickness	Wall Thickness	Type	Operating Temperature [Min]	Operating Temperature [Max]
ALPHA WIRE PF13012 BK002	Black	Heat Resistant	Abrasion Resistant Fray Resistant	Convoluted - Braided	0.081 in	2.06 mm	UL VW-1	Fiberglass PVC Coated	500 '	152.4 m	Oil Resistant	Corrosion Resistant	0.38 mm	0.015 in	Sleeving Insulated	-20 C	130 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Fiberglass, PVC Coated Convoluted - Braided Sleeving, Insulated 0.081" (2.06mm) 500' (152.40m)
