MT25QL256ABA1EW7-0SIT TR

Active

Micron Technology Inc.

MICMT25QL256ABA1EW7-0SIT TR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT25QL256ABA1EW7-0SIT TR

Active

Micron Technology Inc.

MICMT25QL256ABA1EW7-0SIT TR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT25QL256ABA1EW7-0SIT TR

Clock Frequency	133 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization	32 M
Memory Size	256 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

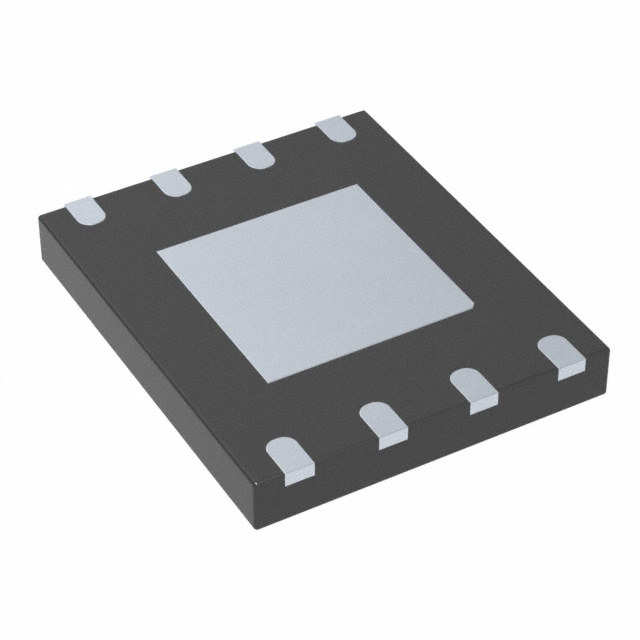

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WPDFN (6x5)(MLP8)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

MT25QL256 Series

Part	Memory Size	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Memory Type	Package / Case [x]	Package / Case	Package / Case [y]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Organization	Memory Format	Clock Frequency	Technology	Qualification	Grade	Access Time	Memory Organization	Write Cycle Time - Word, Page
Micron Technology Inc. MT25QL256ABA8ESF-0SIT	256 Gbit	16-SO	85 °C	-40 °C	SPI - Quad I/O	Non-Volatile	0.295 in	16-SOIC	7.5 mm	Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR
Micron Technology Inc. MT25QL256ABA1EW7-0SIT TR	256 Gbit	8-WPDFN (6x5)(MLP8)	85 °C	-40 °C	SPI - Quad I/O	Non-Volatile		8-WDFN Exposed Pad		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR
Micron Technology Inc. MT25QL256ABA8ESF-0SIT TR	256 Gbit	16-SO	85 °C	-40 °C	SPI - Quad I/O	Non-Volatile	0.295 in	16-SOIC	7.5 mm	Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR
Micron Technology Inc. MT25QL256ABA8ESF-0AAT TR	256 Gbit	16-SO	105 °C	-40 °C	SPI - Quad I/O	Non-Volatile	0.295 in	16-SOIC	7.5 mm	Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR	AEC-Q100	Automotive
Micron Technology Inc. MT25QL256ABA8E12-1SIT	256 Gbit	24-T-PBGA (6x8)	85 °C	-40 °C	SPI - Quad I/O	Non-Volatile		24-TBGA		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR
Micron Technology Inc. MT25QL256ABA1EW9-0SIT TR	256 Gbit	8-WPDFN (8x6) (MLP8)	85 °C	-40 °C	SPI - Quad I/O	Non-Volatile		8-WDFN Exposed Pad		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR
Micron Technology Inc. MT25QL256BBB8E12-CAUT	128 Mb	24-T-PBGA (6x8)	125 °C	-40 °C	SPI - Quad I/O	Non-Volatile		24-TBGA		Surface Mount	2.7 V	3.6 V		FLASH	133 MHz	FLASH - NOR	AEC-Q100	Automotive	5 ns	16M x 8	1.8 ms
Micron Technology Inc. MT25QL256ABA8E12-0AUT	256 Gbit	24-T-PBGA (6x8)	125 °C	-40 °C	SPI - Quad I/O	Non-Volatile		24-TBGA		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR	AEC-Q100	Automotive	5 ns		1.8 ms
Micron Technology Inc. MT25QL256ABA1EW9-0AAT	256 Gbit	8-WPDFN (6x8) (MLP8)	105 °C	-40 °C	SPI - Quad I/O	Non-Volatile		8-WDFN Exposed Pad		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR	AEC-Q100	Automotive
Micron Technology Inc. MT25QL256ABA1EW9-0AAT TR	256 Gbit	8-WPDFN (6x8) (MLP8)	105 °C	-40 °C	SPI - Quad I/O	Non-Volatile		8-WDFN Exposed Pad		Surface Mount	2.7 V	3.6 V	32 M	FLASH	133 MHz	FLASH - NOR	AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.92
		10	$ 3.65
		25	$ 3.54
		50	$ 3.46
		100	$ 3.38
		250	$ 3.27
		500	$ 3.19
		1000	$ 3.15
	Digi-Reel®	1	$ 3.92
		10	$ 3.65
		25	$ 3.54
		50	$ 3.46
		100	$ 3.38
		250	$ 3.27
		500	$ 3.19
		1000	$ 3.15
	Tape & Reel (TR)	4000	$ 3.04

Description

General part information

MT25QL256 Series

FLASH - NOR Memory IC 256Mbit SPI - Quad I/O 133 MHz 8-WPDFN (6x5)(MLP8)
