R30-3011502

Active

Harwin Inc.

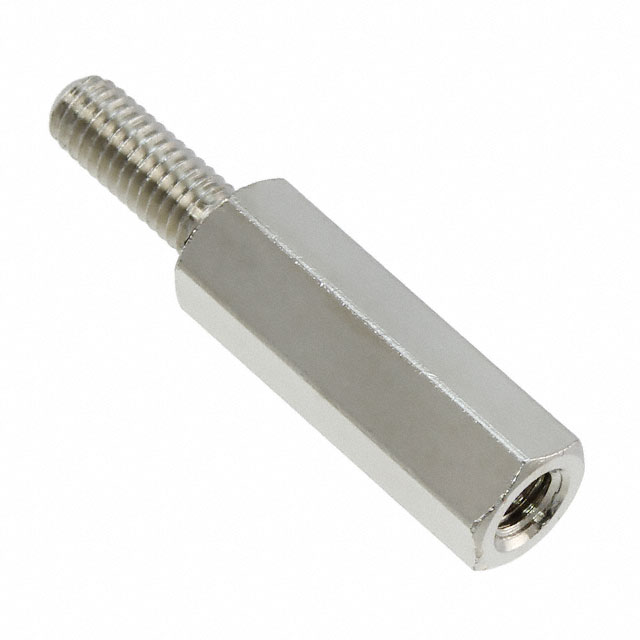

15.00MM M3 METRIC M/F THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

15.00MM M3 METRIC M/F THREADED HEX BRASS SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall [x]	Gender	Threaded/Unthreaded	Type	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Between Board Height	Between Board Height	Screw, Thread Size	Material	Length - Overall	Length - Overall
Harwin Inc. R30-3011202	0.787 "	20 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.472 in	12 mm	M3x0.5	Brass
Harwin Inc. R30-3010602	0.551 "	14 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.236 in	6 mm	M3x0.5	Brass
Harwin Inc. R30-3010502			Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.197 in	5 mm	M3x0.5	Brass	13 mm	0.512 "
Harwin Inc. R30-3011002	0.709 "	18 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.394 in	10 mm	M3x0.5	Brass
Harwin Inc. R30-3012002			Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.787 in	20 mm	M3x0.5	Brass
Harwin Inc. R30-3011402	0.866 "	22 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.551 in	14 mm	M3x0.5	Brass
Harwin Inc. R30-3010402	0.472 in	12 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.157 in	4 mm	M3x0.5	Brass
Harwin Inc. R30-3011502	0.906 in	23 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.591 in	15 mm	M3x0.5	Brass
Harwin Inc. R30-3011302	0.827 in	21 mm	Female Male	Threaded	Hex Standoff	0.197 in	5 mm	Nickel	0.512 in	13 mm	M3x0.5	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hex Standoff Threaded M3x0.5 Brass 0.591" (15.00mm)
