1045482-1

Active

TE Connectivity Aerospace, Defense and Marine

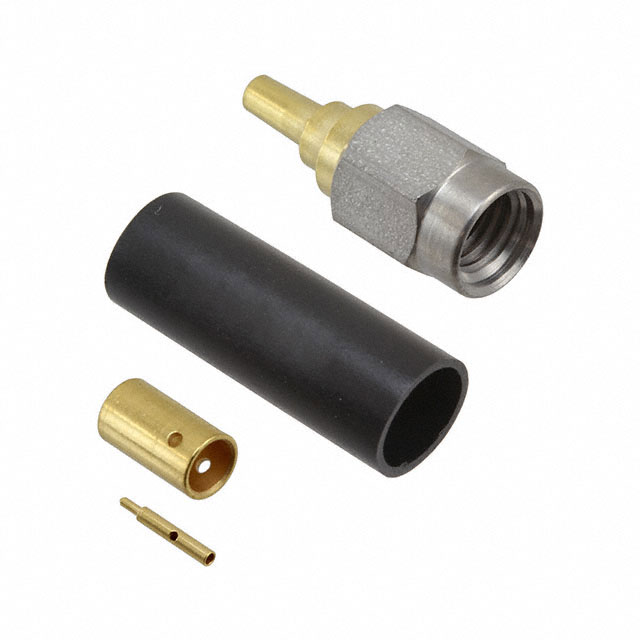

CONN SSMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN SSMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1045482-1

Body Material	Stainless Steel
Cable Group	RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Center Contact Material	Contact Termination	Connector Type	Dielectric Material	Voltage Rating	Impedance	Center Contact Plating	Shield Termination	Connector Style	Frequency - Max [Max]	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Number of Ports
TE Connectivity Aerospace, Defense and Marine 1045482-1	Free Hanging (In-Line)	Beryllium Copper	Solder	Male Pin Plug	Polytetrafluoroethylene (PTFE)	250 VDC	50 Ohms	Gold	Solder	SSMA	12.4 GHz	Silver	Stainless Steel	-65 ░C	165 °C	RG-174	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 60.01

General part information

SSMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
