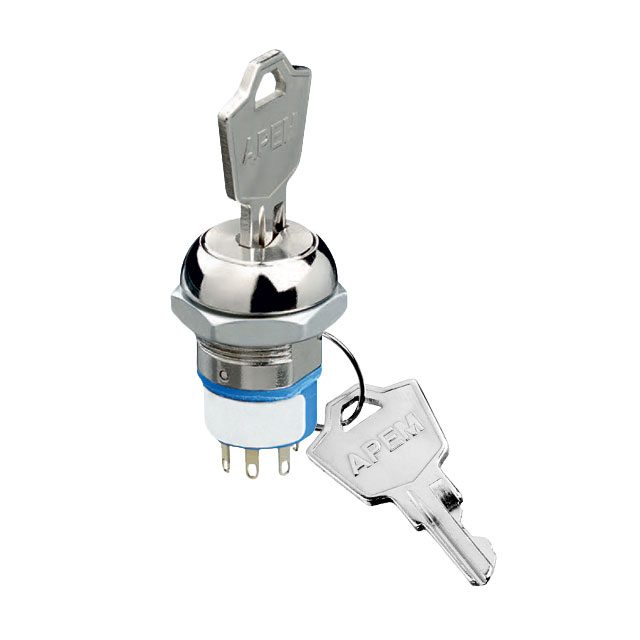

LK6DNB126N3

Active

APEM

SWITCH KEYLOCK 3POS DP3T 4A 125V

Search across all available documentation for this part.

Active

APEM

SWITCH KEYLOCK 3POS DP3T 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	LK6DNB126N3

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	DP3T
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	4 A
Depth Behind Flange [z]	27.55 mm
Electrical Life	6000 Cycles
Key Removable Positions	3 only
Mechanical Life	6000 Cycles
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Termination Style	Key Removable Positions	Depth Behind Flange [z]	Panel Cutout Dimensions [diameter]	Mechanical Life	Contact Material	Switch Function	Voltage Rating - AC	Circuit	Angle of Throw	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Contact Finish	Electrical Life	Contact Timing	Voltage Rating - DC	Current Rating (Amps)
APEM LK6HNB126N3	Solder Lug	1 only	27.55 mm	19 mm	6000 Cycles	Copper Alloy	On-On-On	125 V	DP3T	45 °	-30 ░C	85 °C	Flat Key	Gold	6000 Cycles	Not Specified	28 V	4 A
APEM LK6DNB126N3	Solder Lug	3 only	27.55 mm	19 mm	6000 Cycles	Copper Alloy	On-On-On	125 V	DP3T	45 °	-30 ░C	85 °C	Flat Key	Gold	6000 Cycles	Not Specified	28 V	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 15.11

General part information

Keylock Switch 3 Position DP3T 4A (AC/DC) 125 VAC 28 VDC Panel Mount
