101139NP

Active

LAPP

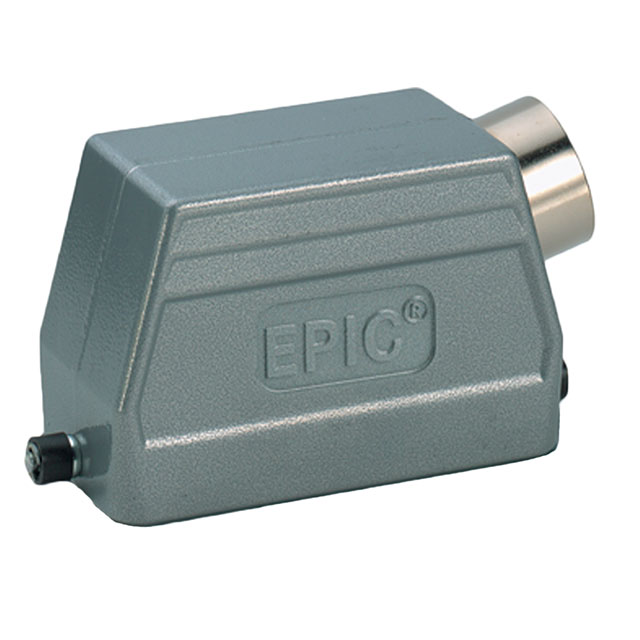

CONN HOOD HB24 SE NPT3/4

Search across all available documentation for this part.

Active

LAPP

CONN HOOD HB24 SE NPT3/4

Technical Specifications

Parameters and characteristics for this part

Specification	101139NP

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.402 "
Size / Dimension [z]	61 mm
Style	Side Entry
Thread Size	NPT-3/4

Part	Ingress Protection	Lock Location	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Style	Housing Color	Housing Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Finish
LAPP 101139NP	IP65 - Dust Tight Water Resistant	Locking Clip (1) on Base Bottom	NPT-3/4	120 mm	2.402 "	43 mm	1.693 in	4.724 "	61 mm	Side Entry	Gray	Aluminum Alloy	Hood	125 °C	-40 °C	HB24	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry NPT-3/4 HB24 IP65 - Dust Tight, Water Resistant
