5530745F

Active

DIALIGHT

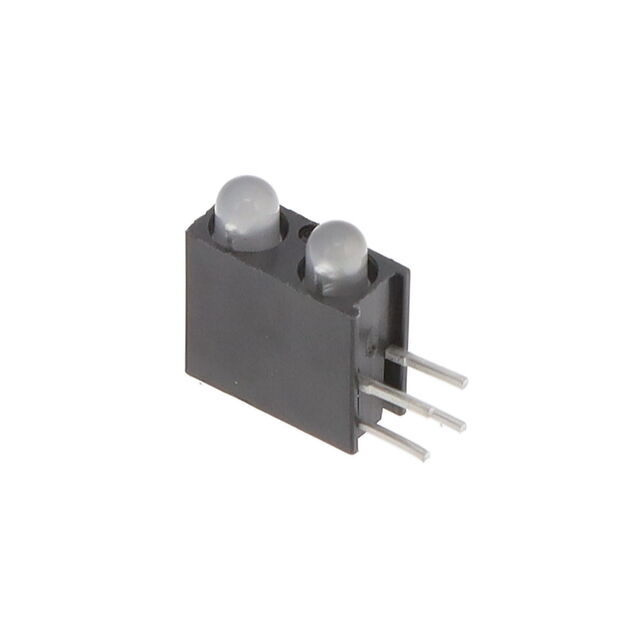

LED CBI 3MM BI-LVL GRN/YL/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5530745F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/YL/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5530745F

Color	Yellow (x 1), Red, Green
Configuration	2 High
Current	30 mA, 30 mA, 20 mA
Lens Size [diameter]	3 mm
Lens Style	Round with Domed Top
Lens Type	Diffused
Millicandela Rating	5.6 mcd, 5.6 mcd, 6.3 mcd, 4.3 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	80 °
Voltage Rating	2 V, 2.1 V, 2.1 V
Wavelength - Peak [custom]	585 nm, 630 nm, 565 nm

5530745 Series

Part	Lens Style	Mounting Type	Lens Size [diameter]	Color	Configuration	Wavelength - Peak [custom]	Millicandela Rating	Voltage Rating	Viewing Angle	Current	Lens Type
DIALIGHT 5530745861F	Round with Domed Top	Through Hole Right Angle	3 mm
DIALIGHT 5530745F	Round with Domed Top	Through Hole Right Angle	3 mm	Green Red Yellow (x 1)	2 High	565 nm 585 nm 630 nm	4.3 mcd 5.6 mcd 5.6 mcd 6.3 mcd	2 V 2.1 V 2.1 V	80 °	20 mA 30 mA 30 mA	Diffused

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.41
		50	$ 2.27
		100	$ 1.75
		1000	$ 1.36
		5000	$ 1.25

Description

General part information

5530745 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green, Yellow (x 1), Red, Yellow (x 1) Diffused 2.1V Green, 2V Red, 2.1V Yellow 30mA Green, 30mA Red, 20mA Yellow Round with Domed Top 3.00mm Dia Through Hole, Right Angle
