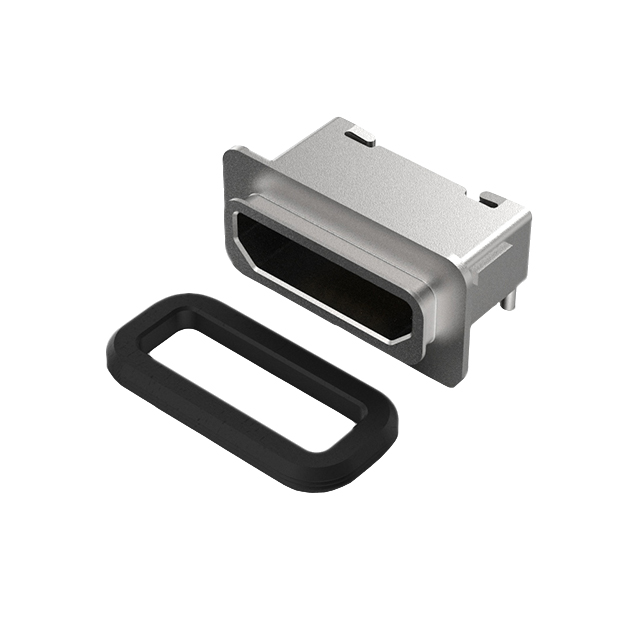

USB3500-30-A-KIT
ActiveGCT
CONN RCPT USB2.0 MICRO B SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB3500-30-A-KIT |
|---|---|
| Connector Type | USB - micro B |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.8 A, 1 A |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 5 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.70 | |
| 10 | $ 2.35 | |||
| 25 | $ 2.25 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.75 | |||
| Digi-Reel® | 1 | $ 2.70 | ||
| 10 | $ 2.35 | |||
| 25 | $ 2.25 | |||
| 50 | $ 2.20 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.90 | |||
| 500 | $ 1.75 | |||
| Tape & Reel (TR) | 1000 | $ 1.50 | ||
| 2000 | $ 1.45 | |||
| 3000 | $ 1.40 | |||
| 5000 | $ 1.33 | |||
Description
General part information
USB3500 Series
USB - micro B USB 2.0 Receptacle Connector 5 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
