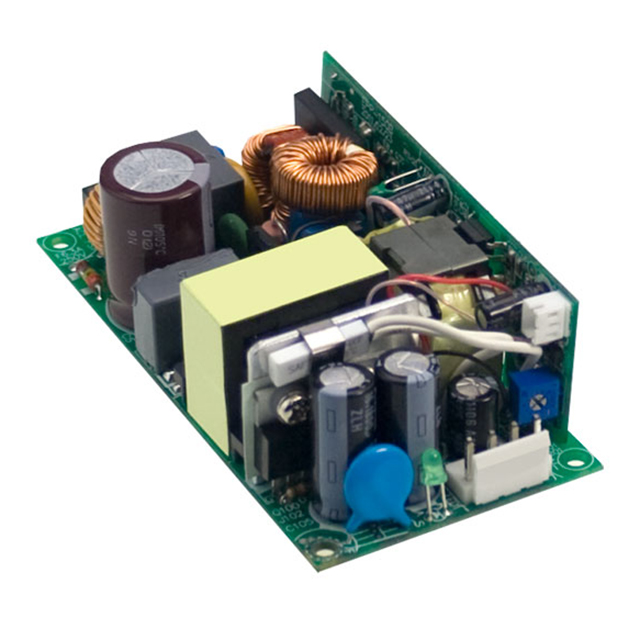

EPP-100-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 76W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 76W

Technical Specifications

Parameters and characteristics for this part

Specification	EPP-100-12

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	6.3 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	102 W
Power (Watts)	76 W
Size / Dimension [x]	101.6 mm
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	29 mm, 1.14 in
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Efficiency	Applications	Features	Current - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Number of Outputs	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Minimum Load Required	Voltage - Isolation	Voltage - Output 1	Type
MEAN WELL USA Inc. EPP-100-12	91 %	ITE (Commercial)	Adjustable Output PFC Universal Input	6.3 A	50.8 mm	1.14 in 29 mm	101.6 mm	CB CE cURus TUV	1	Chassis Mount	70 °C	-30 °C	102 W	76 W	90 VAC 127 VDC	264 VAC 370 VDC		3000 V	12 V	Open Frame
MEAN WELL USA Inc. EPP-100-24	92 %	ITE (Commercial)	Adjustable Output PFC Universal Input	3.2 A	50.8 mm	1.14 in 29 mm	101.6 mm	CB CE cURus TUV	1	Chassis Mount	70 °C	-30 °C	101 W	77 W	90 VAC 127 VDC	264 VAC 370 VDC		3000 V	24 V	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
