0041.8841.3107

Active

SCHURTER Inc.

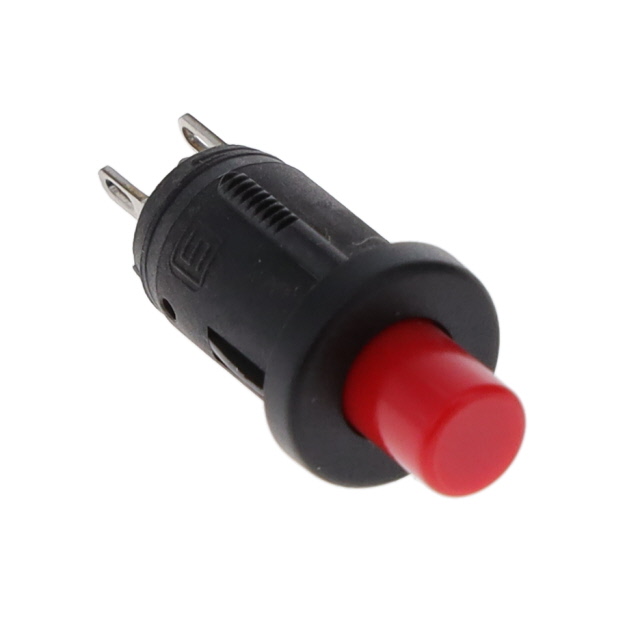

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Technical Specifications

Parameters and characteristics for this part

Specification	0041.8841.3107

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Ingress Protection	IP40
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	60 V
Voltage Rating - DC	50 VDC

Part	Mounting Type	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Actuator Marking	Voltage Rating - DC	Mechanical Life	Termination Style	Ingress Protection	Type	Voltage Rating - AC	Switch Function	Circuit	Current Rating (Amps)	Actuator Type	Panel Cutout Dimensions [diameter]
SCHURTER Inc. 0041.8841.3107	Panel Mount Front	Red	-25 °C	85 °C	10000 Cycles	No Marking	50 VDC	10000 Steps	Solder Lug	IP40	Standard	60 V	Off-Mom	SPST-NO	200 mA	Button Round	8 mm
SCHURTER Inc. 0041.8841.6107	Panel Mount Front		-25 °C	85 °C	10000 Cycles	No Marking	50 VDC	10000 Steps	Solder Lug	IP40	Standard	60 V	Off-Mom	SPST-NO	200 mA	Button Round	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front
