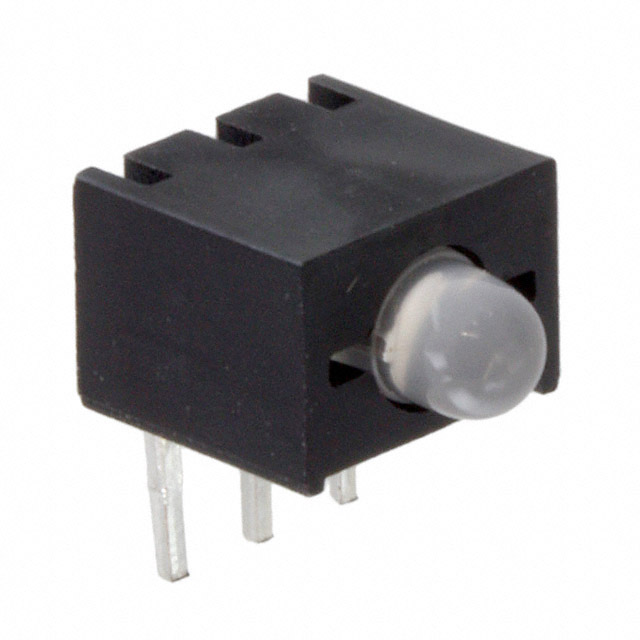

SSF-LXH109SISUGW

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN/RED DIFF 3LD

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH109SISUGW

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN/RED DIFF 3LD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH109SISUGW

Color	Red, Green
Configuration	Single
Current	25 mA, 30 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating	130 mcd, 350 mcd
Viewing Angle	60 °
Voltage Rating	2.2 V, 2 V
Wavelength - Peak	574 nm, 636 nm

SSF-LXH109 Series

Part	Viewing Angle	Configuration	Wavelength - Peak	Millicandela Rating	Lens Type	Lens Style	Lens Size	Lens Size	Current	Color	Voltage Rating
Lumex Opto/Components Inc. SSF-LXH109SISUGW	60 °	Single	574 nm 636 nm	130 mcd 350 mcd	Diffused White	Round with Domed Top	3 mm	T-1	25 mA 30 mA	Green Red	2 V 2.2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH109 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Orange, 30mA Red Round with Domed Top 3mm, T-1

Documents

Technical documentation and resources

No documents available
