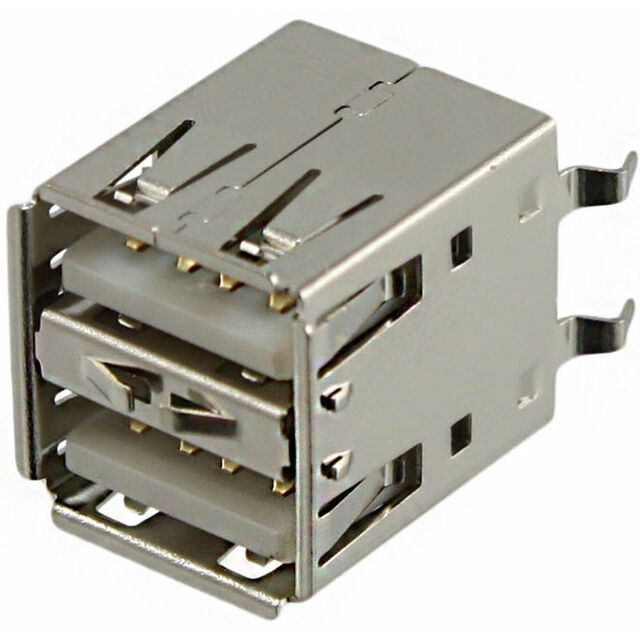

USB-A2VSW6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA STACK 8POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USB-A2VSW6
ActiveOn Shore Technology Inc.
CONN RCPT TYPEA STACK 8POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USB-A2VSW6 |
|---|---|
| Connector Type | USB-A (USB TYPE-A), Stacked |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 8 |
| Number of Ports | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.42 | |
| 10 | $ 1.24 | |||
| 25 | $ 1.19 | |||
| 40 | $ 1.16 | |||
| 104 | $ 1.11 | |||
| 312 | $ 1.00 | |||
| 520 | $ 0.92 | |||
| 1040 | $ 0.79 | |||
| 2496 | $ 0.74 | |||
Description
General part information
USB-A2V Series
USB-A (USB TYPE-A), Stacked Receptacle Connector 8 Position Through Hole
