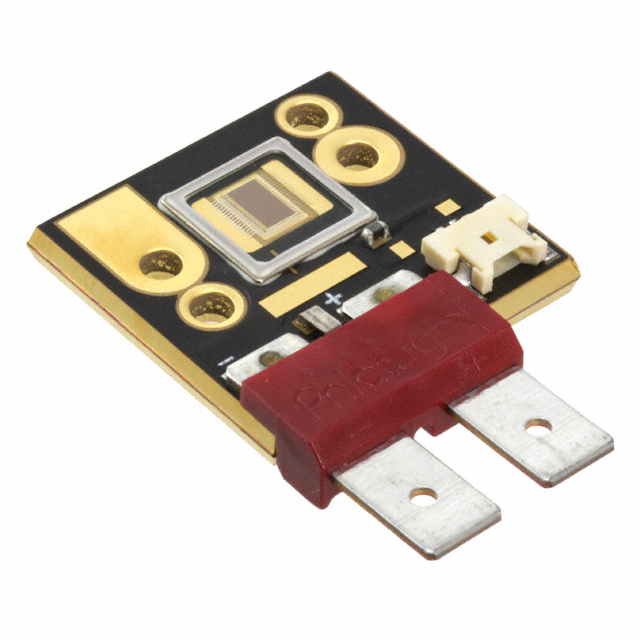

CBT-120-R-C11-HK101

Unknown

Luminus Devices Inc.

LED MOD CBT-120 RED SQUARE

Search across all available documentation for this part.

Unknown

Luminus Devices Inc.

LED MOD CBT-120 RED SQUARE

Technical Specifications

Parameters and characteristics for this part

Part	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]	Color	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Max [Max]	Lens Type	Type	Configuration	Current - Test	Height [z]	Wavelength [Max]	Wavelength [Min]	Wavelength
Luminus Devices Inc. CBT-120-B-C11-KN301	2.6 mm	4.63 mm	Blue	4.1 V	28 mm	42 mm	With Connector	36 A	Flat	LED Module	Square	18 A	5.61 mm
Luminus Devices Inc. CBT-120-R-C11-HM100	2.6 mm	4.63 mm	Red	2.3 V	28 mm	42 mm	With Connector	36 A	Flat	LED Module	Square	18 A	5.61 mm	635 nm	611 nm	623 nm
Luminus Devices Inc. CBT-120-B-C11-KM301	2.6 mm	4.63 mm	Blue	4.1 V	28 mm	42 mm	With Connector	36 A	Flat	LED Module	Square	18 A	5.61 mm
Luminus Devices Inc. CBT-120-B-C11-KM300	2.6 mm	4.63 mm	Blue	4.1 V	28 mm	42 mm	With Connector	36 A	Flat	LED Module	Square	18 A	5.61 mm	475 nm	450 nm	463 nm
Luminus Devices Inc. CBT-120-R-C11-HK101	2.6 mm	4.63 mm	Red	2.3 V	28 mm	42 mm	With Connector	36 A	Flat	LED Module	Square	18 A	5.61 mm			621 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module CBT-120 Red Square

Technical documentation and resources

No documents available
