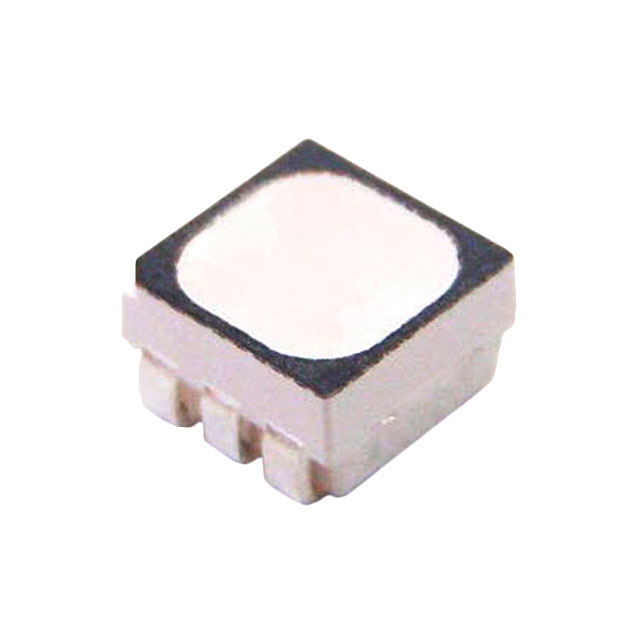

CLX6D-FKB-CN1R1H1BB7D3D3
ObsoleteCree LED
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
CLX6D-FKB-CN1R1H1BB7D3D3
ObsoleteCree LED
LED RGB DIFFUSED 6PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLX6D-FKB-CN1R1H1BB7D3D3 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 2.9 mm |
| Lens Color | White |
| Lens Size | 1 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 1150 mcd |
| Millicandela Rating [custom] | 2300 mcd |
| Millicandela Rating [custom] | 533 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, J-Lead |
| Size / Dimension [x] | 3.4 mm |
| Size / Dimension [y] | 3.4 mm |
| Supplier Device Package | 6-PLCC |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Wavelength - Dominant | 622 nm, 530 nm, 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
CLX6D Series
Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3V Green, 3.2V Blue 6-SMD, J-Lead
Documents
Technical documentation and resources
No documents available
