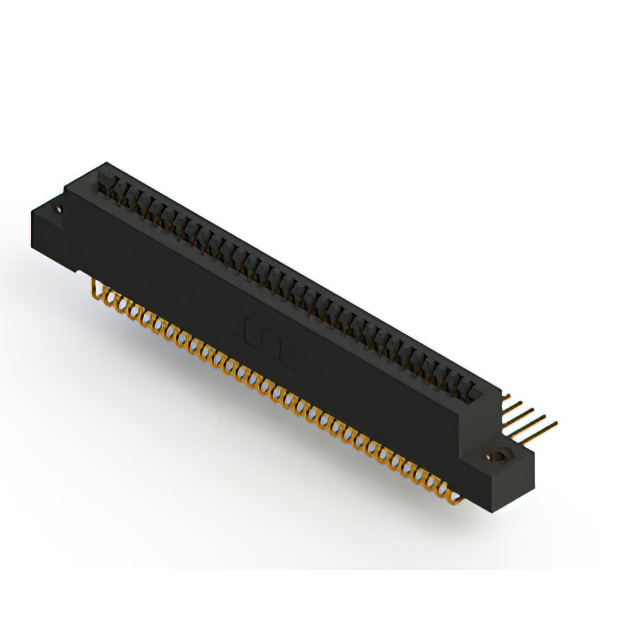

892-062-559-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-062-559-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 62POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-062-559-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-062 Series
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature | Contact Type | Gender | Contact Finish | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Color | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | ||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | 3.96 mm | 0.156 in |
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | Cantilever | Female | Gold | Through Hole Right Angle | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | ||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder Eyelet(s) | Black | 2 | Copper Alloy | |||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Female | Gold | Through Hole Right Angle | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | ||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | 2.95 mm | 0.116 in |
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | |||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | |||
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Flush Mount Side Opening Unthreaded | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder Eyelet(s) | Black | 2 | Copper Alloy | 3.25 mm | 0.128 " |
EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 31 | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Cantilever | Female | Gold | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 125 °C | -40 °C | 62 | Solder | Black | 2 | Copper Alloy | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
