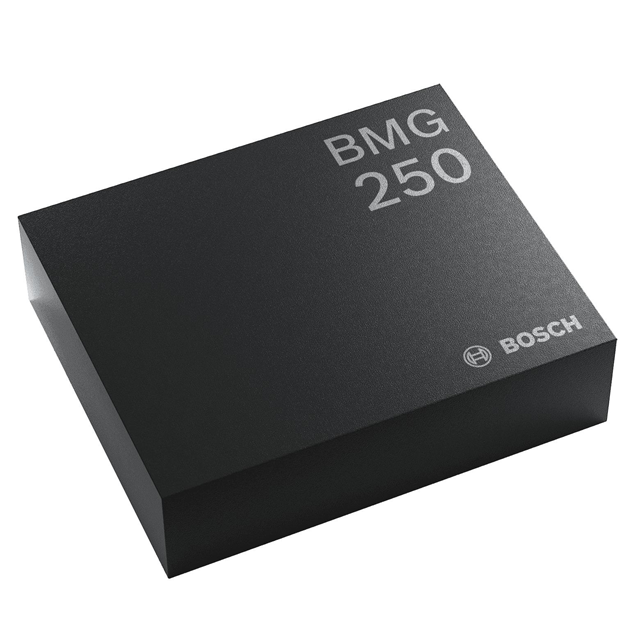

BMG250
ObsoleteBosch Sensortec
GYROSCOPE 3-AXIS SPI/I2C SMD
Deep-Dive with AI
Search across all available documentation for this part.
BMG250
ObsoleteBosch Sensortec
GYROSCOPE 3-AXIS SPI/I2C SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BMG250 |
|---|---|
| Axis [x] | Pitch |
| Axis [y] | Roll |
| Axis [z] | Yaw |
| Bandwidth [Max] | 3.2 kHz |
| Bandwidth [Min] | 25 Hz |
| Current - Supply | 850 çA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 14-LGA |
| Range °/s | 2000, 500, 125 °/s, 1000, 250 |
| Sensitivity (LSB/(°/s)) [Max] | 262.4 LSB/(°/s) |
| Sensitivity (LSB/(°/s)) [Min] | 16.4 LSB/(°/s) |
| Type | Digital |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.71 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BMG250 Series
Gyroscope X (Pitch), Y (Roll), Z (Yaw) ±125, 250, 500, 1000, 2000 25Hz ~ 3200Hz I2C, SPI
Documents
Technical documentation and resources
No documents available
