11700A2 0061000

Active

Belden Inc.

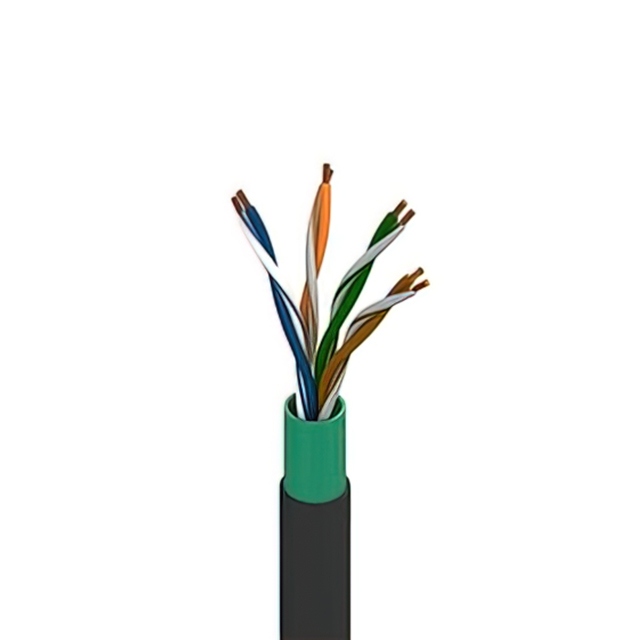

CABLE CAT5E 8CON 24AWG BLU

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLU

Technical Specifications

Parameters and characteristics for this part

Specification	11700A2 0061000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Diameter	7.24 mm
Jacket (Insulation) Diameter	0.285 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style CMR
Usage	Industrial, Network
Voltage	300 V
Wire Gauge	24 AWG

Part	Wire Gauge	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Features	Usage	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Cable Type	Voltage	Conductor Insulation	Length	Length	Jacket Color
Belden Inc. 11700A2 0061000	24 AWG	7.24 mm	0.285 in	Solid	Copper Bare	0.889 mm	0.035 in	UL Style CMR	Oil Resistant Rip Cord UV Resistant	Industrial Network	8	-10 °C	75 ░C	Poly-Vinyl Chloride (PVC)	Multi-Pair Cat5e	300 V	Polyolefin (PO)	1000 ft	304.8 m	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.07

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Blue 24 AWG 1000.0' (304.8m)
