DCHM21SCBRPN-HT1 - DCHM15SCBRPN-HT1

DCHM21SCBRPN-HT1

Active
Cinch Connectivity Solutions Trompeter

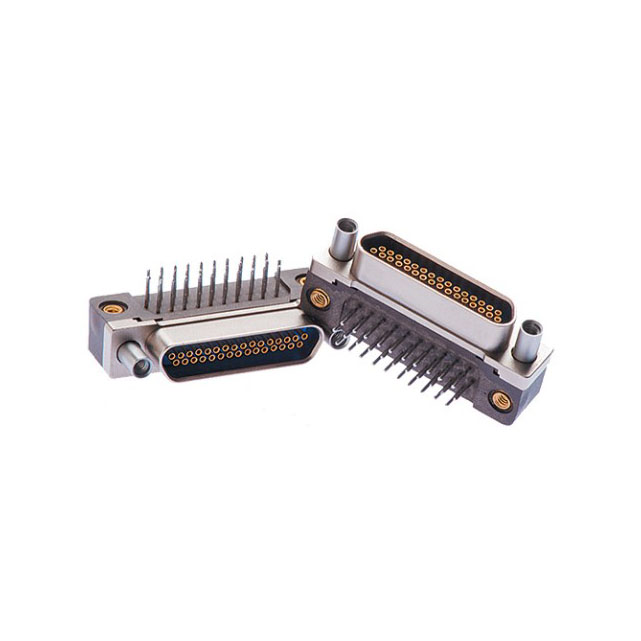

D SUB CONNECTOR, 21 CONTACTS, RECEPTACLE, SOLDER, DURA-CON DCHM SERIES, METAL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DCHM21SCBRPN-HT1 - DCHM15SCBRPN-HT1

DCHM21SCBRPN-HT1

Active
Cinch Connectivity Solutions Trompeter

D SUB CONNECTOR, 21 CONTACTS, RECEPTACLE, SOLDER, DURA-CON DCHM SERIES, METAL BODY

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationDCHM21SCBRPN-HT1
Connector StyleMicro-D, D-Type
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact TypeSignal
Dielectric MaterialLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole, Right Angle
Number of Positions21
Number of Rows2
Operating Temperature [Max]347 °F
Operating Temperature [Min]-40 °C
Shell Material, FinishElectroless Nickel
Shell Size, Connector Layout [custom]0.1
Shell Size, Connector Layout [custom]0.1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 25$ 139.76
NewarkEach 50$ 147.72

Description

General part information

DCHM21 Series

The Dura-Con™ High Temperature Series Micro-D Connectors and Cable Assemblies are designed to meet the extreme mechanical and electrical needs in the harshest environments of military/aerospace and industrial applications. This product combines Cinch's proven twist pin technology with unique plug insulators that provide increased electrical protection between cavities. These connector plugs mate to our right angle PCB socket connectors, to make a connector system that offers superior performance. This technology also provides the confidence and reliability needed in high temperature, vibration and shock applications.
