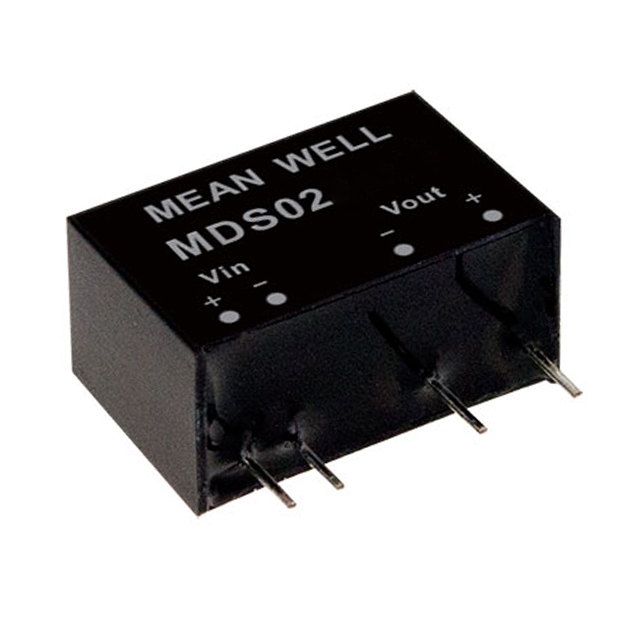

MDS02L-15

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 2W

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

DC DC CONVERTER 15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Applications	Voltage - Input (Min) [Min]	Features	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Voltage - Isolation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Type	Mounting Type	Supplier Device Package
MEAN WELL USA Inc. MDS02N-05	2 W	Medical	21.6 V	SCP	5 V	26.4 V	80 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	400 mA	Isolated Module	Through Hole	7-SIP
MEAN WELL USA Inc. MDS02L-12	2 W	Medical	4.5 V	SCP	12 V	5.5 V	80 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	167 mA	Isolated Module	Through Hole	7-SIP
MEAN WELL USA Inc. MDS02N-15	2 W	Medical	21.6 V	SCP	15 V	26.4 V	85 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	133 mA	Isolated Module	Through Hole	7-SIP
MEAN WELL USA Inc. MDS02L-15	2 W	Medical	4.5 V	SCP	15 V	5.5 V	79 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	133 mA	Isolated Module	Through Hole	7-SIP
MEAN WELL USA Inc. MDS02N-12	2 W	Medical	21.6 V	SCP	12 V	26.4 V	83 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	167 mA	Isolated Module	Through Hole	7-SIP
MEAN WELL USA Inc. MDS02M-05	2 W	Medical	10.8 V	SCP	5 V	13.2 V	75 %	1	6000 V	7-SIP Module 4 Leads	85 °C	-40 °C	400 mA	Isolated Module	Through Hole	7-SIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.57

General part information

Isolated Module DC DC Converter 1 Output 15V 133mA 4.5V - 5.5V Input
