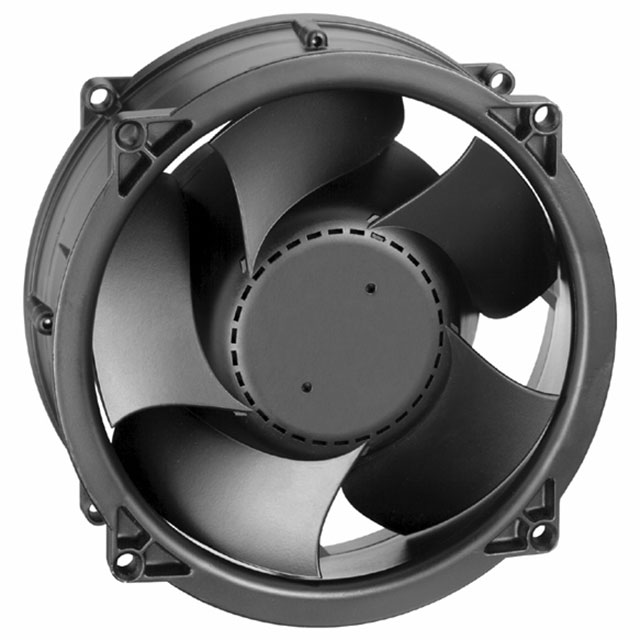

W1G180-AB31-01
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 16V TO 28V 220 X 70MM
Deep-Dive with AI
Search across all available documentation for this part.
W1G180-AB31-01
Activeebm-papst Inc.
DC FAN AXIAL BALL BEARING 24V 16V TO 28V 220 X 70MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W1G180-AB31-01 |
|---|---|
| Air Flow | 529.7 CFM |
| Air Flow | 14.83 m³/min |
| Approval Agency | UL, CSA, CE |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 42000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 68 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 93 W |
| RPM | 4550 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 200 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 16 VDC |
| Weight | 4 lbs |
| Weight | 1.8 kg |
| Width [y] | 70 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 263.50 | |
Description
General part information
W1G180 Series
Fan Tubeaxial 24VDC Round - 200mm Dia Ball 529.7 CFM (14.83m³/min) 2 Wire Leads
