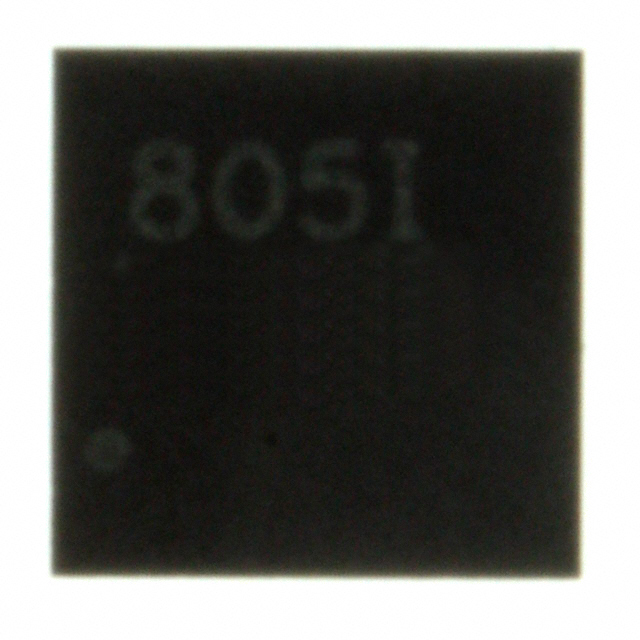

SC805IMLTRT

Obsolete

Semtech Corporation

IC BATT CHG MULT-CHEM 1CEL 10MLP

Search across all available documentation for this part.

Obsolete

Semtech Corporation

IC BATT CHG MULT-CHEM 1CEL 10MLP

Technical Specifications

Parameters and characteristics for this part

Specification	SC805IMLTRT

Battery Chemistry	Multi-Chemistry
Battery Pack Voltage	4.2 V
Charge Current - Max [Max]	1 A
Current - Charging	Constant - Programmable
Fault Protection	Over Temperature, Over Current
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-VFDFN Exposed Pad
Programmable Features	Current, Timer
Supplier Device Package	10-MLP (3x3)
Voltage - Supply (Max)	5.9 V

Part	Battery Pack Voltage	Supplier Device Package	Charge Current - Max [Max]	Programmable Features	Voltage - Supply (Max)	Number of Cells	Battery Chemistry	Package / Case	Mounting Type	Fault Protection	Current - Charging	Operating Temperature [Max]	Operating Temperature [Min]
Semtech Corporation SC805AMLTRT	4.2 V	10-MLPD (3x3)	1 A	Current Timer	5.9 V	1	Multi-Chemistry	10-VFDFN Exposed Pad	Surface Mount	Over Current Over Temperature	Constant - Programmable	85 °C	-40 °C
Semtech Corporation SC805IMLTRT	4.2 V	10-MLP (3x3)	1 A	Current Timer	5.9 V	1	Multi-Chemistry	10-VFDFN Exposed Pad	Surface Mount	Over Current Over Temperature	Constant - Programmable	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Charger IC Multi-Chemistry 10-MLP (3x3)

Technical documentation and resources

No documents available
