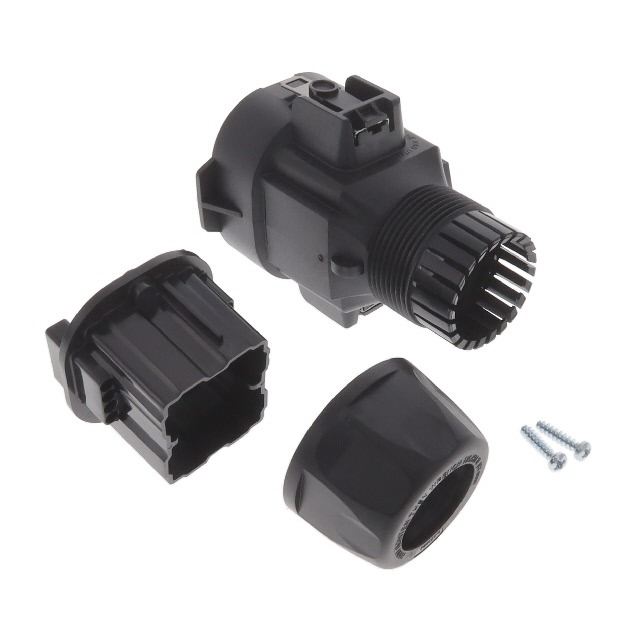

SK6-076C04
ActiveAnderson Power Products, Inc.
HIGH POWER CONNECTOR, SPEC PAK SERIES, PLUG, 600 V, 80 A, CABLE MOUNT, SCREW
Deep-Dive with AI
Search across all available documentation for this part.
SK6-076C04
ActiveAnderson Power Products, Inc.
HIGH POWER CONNECTOR, SPEC PAK SERIES, PLUG, 600 V, 80 A, CABLE MOUNT, SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SK6-076C04 |
|---|---|
| Connector Type | Non-Gendered |
| Current Rating (Amps) | 40 A |
| Fastening Type | Spring Retention |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SK6-076C0 Series
4 Position Non-Gendered Connector Crimp Free Hanging (In-Line)
