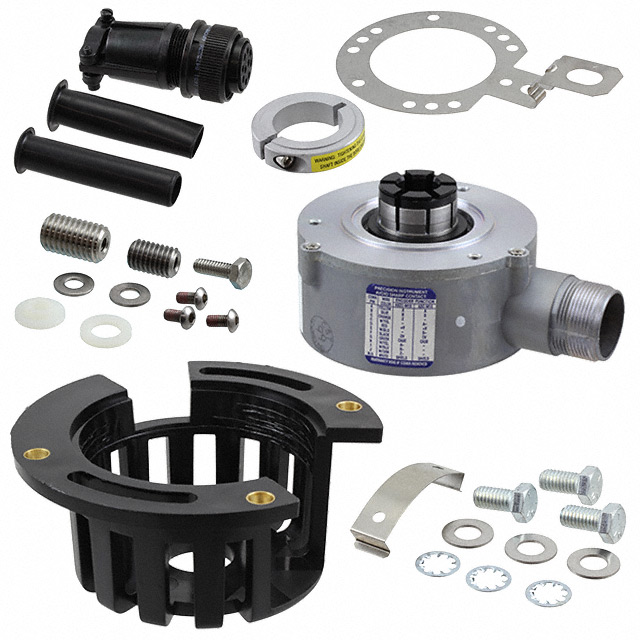

01075-126

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 250PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 250PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01075-126

Actuator Type	Hole for Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount, Motors
Orientation	User Selectable
Output Type	Quadrature (Incremental)
Pulses per Revolution	250
Rotational Life (Cycles Min) [Min]	7.5B
Termination Style	Cable

Part	Rotational Life (Cycles Min)	Voltage - Supply [Min]	Voltage - Supply [Max]	Encoder Type	Pulses per Revolution	Termination Style	Mounting Type	Output Type	Orientation	Actuator Type	Rotational Life (Cycles Min) [Min]
Sensata-BEI Sensors 01075-125	200M	5 V	28 V	Optical	2048	Cable	Servo Mount	Quadrature with Index (Incremental)	User Selectable	Shaft
Sensata-BEI Sensors 01075-097				Optical	1024	Connector	Chassis Mount Motors	Quadrature with Index (Incremental)	User Selectable	Hole for Shaft	7.5B
Sensata-BEI Sensors 01075-126				Optical	250	Cable	Chassis Mount Motors	Quadrature (Incremental)	User Selectable	Hole for Shaft	7.5B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2299.10

General part information

ROTARY ENCODER OPTICAL 250PPR

Technical documentation and resources

No documents available
