XR76112ELTR-F
ActiveMaxLinear, Inc.
IC REG BUCK ADJ 12A 30QFN
Deep-Dive with AI
Search across all available documentation for this part.
XR76112ELTR-F
ActiveMaxLinear, Inc.
IC REG BUCK ADJ 12A 30QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XR76112ELTR-F |
|---|---|
| Current - Output | 12 A |
| Frequency - Switching [Max] | 800 kHz |
| Frequency - Switching [Min] | 200 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

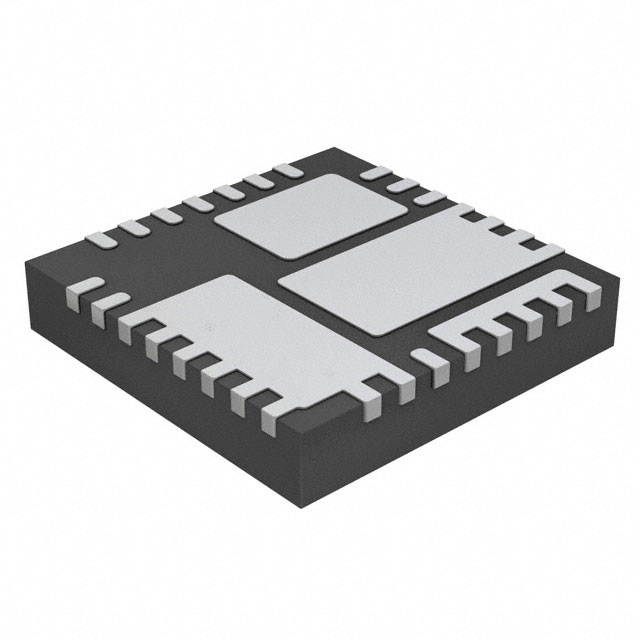

| Package / Case | 30-PowerVFQFN |
| Supplier Device Package | 30-QFN (5x5) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 22 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 18 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 3.66 | |
Description
General part information
XR76112 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 30-PowerVFQFN
Documents
Technical documentation and resources
No documents available
