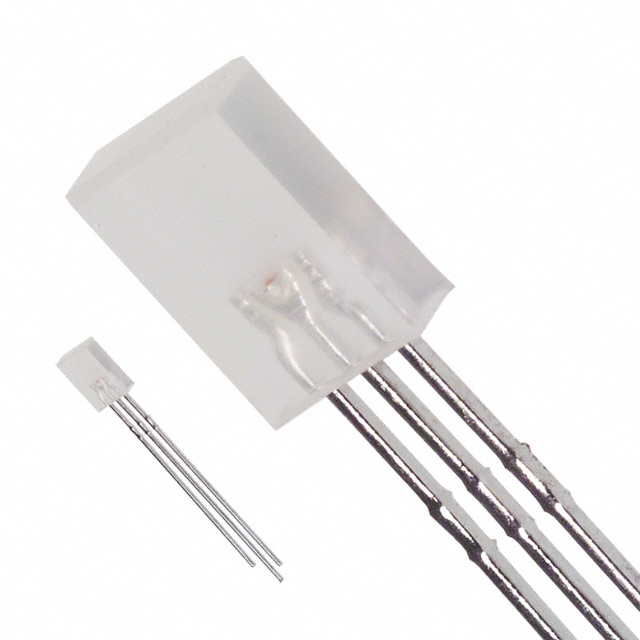

SSL-LX2577IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFF RECT 2X5MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
SSL-LX2577IGW
ActiveLumex Opto/Components Inc.
LED GRN/RED DIFF RECT 2X5MM T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSL-LX2577IGW |
|---|---|
| Color | Red, Green |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 7 mm |
| Lens Color | White |
| Lens Size [x] | 5 mm |
| Lens Size [y] | 2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10mcd Red, 10mcd Green |
| Mounting Type | Through Hole |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | Rectangular 2mmx5mm |
| Viewing Angle [custom] | 90 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V, 2 V |
| Wavelength - Peak | 565 nm, 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.62 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.27 | |||
| 1000 | $ 0.21 | |||
| 5000 | $ 0.18 | |||
| 10000 | $ 0.17 | |||
Description
General part information
SSL-LX2577 Series
Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
Documents
Technical documentation and resources
No documents available
