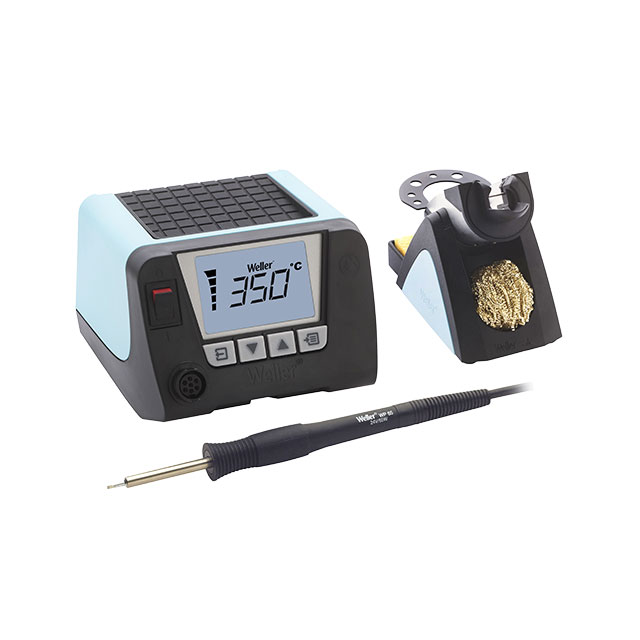

WT1011N

Active

Apex Tool Group

SOLDERING STATION 90W 1 CH 120V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING STATION 90W 1 CH 120V

Technical Specifications

Parameters and characteristics for this part

Specification	WT1011N

Base Unit	WT1
Control/Display Type	Digital
Features	ESD Safe, LCD Display
Includes	Soldering Pencil
Number of Channels	1
Plug Type	Not Specified, Included
Supplied Iron, Tweezer, Handle	WP65
Supplied Tips/Nozzles	XNTA
Temperature Range [Max]	450 °C
Temperature Range [Max]	850 °F
Temperature Range [Min]	150 °F
Temperature Range [Min]	50 °C
Tip Cleaner	Scouring Pad and Sponge
Type	Soldering
Voltage - Input	120 V
Wattage	90 W
Workstand	WSR201

Part	Voltage - Input	Wattage	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Type	Control/Display Type	Base Unit	Supplied Tips/Nozzles	Tip Cleaner	Workstand	Number of Channels	Plug Type	Supplied Iron, Tweezer, Handle	Features	Includes
Apex Tool Group WT1011N	120 V	90 W	150 °F	450 °C	50 °C	850 °F	Soldering	Digital	WT1	XNTA	Scouring Pad and Sponge	WSR201	1	Included Not Specified	WP65	ESD Safe LCD Display	Soldering Pencil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 479.00

General part information

SOLDERING STATION 90W 1 CH 120V
