DS05-127-2-04BK-SMT-TR

Active

CUI Devices

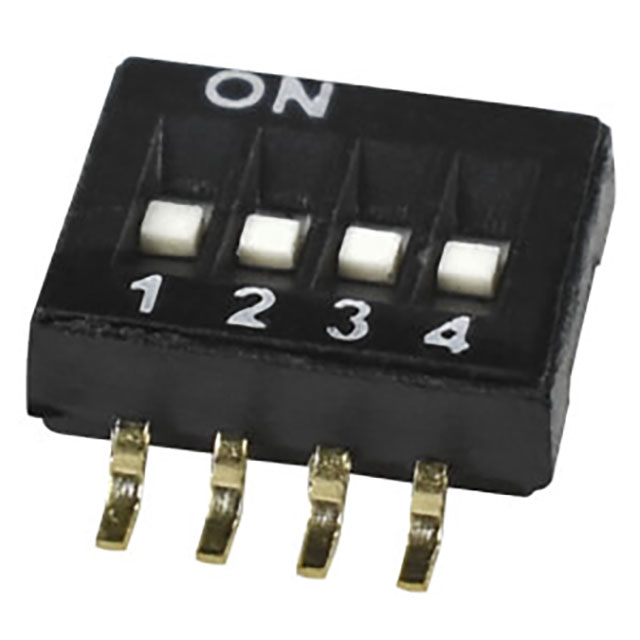

SWITCH DIP OFF ON SPST 4 FLAT SLIDE 0.025A 24VDC GULL WING 1.27MM SMD T/R

Search across all available documentation for this part.

Active

CUI Devices

SWITCH DIP OFF ON SPST 4 FLAT SLIDE 0.025A 24VDC GULL WING 1.27MM SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	DS05-127-2-04BK-SMT-TR

Actuator Level	Flush, Recessed
Actuator Type	Slide (Standard)
Body Material	Polybutylene Terephthalate (PBT)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	0.094 "
Height Above Board	2.4 mm
Length	6.65 mm
Length	0.262 "
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

Part	Contact Finish	Contact Material	Current Rating (Amps)	Circuit	Body Material	Voltage Rating	Electrical Life	Length [x]	Length [x]	Number of Positions	Height Above Board	Height Above Board	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Actuator Type	Actuator Level	Termination Style	Length	Length
CUI Devices DS05-127-2-02BK-SMT-TR	Gold	Copper Alloy	25 mA	SPST	Polybutylene Terephthalate (PBT)	24 VDC	2000 Steps	0.162 in	4.11 mm	2	0.094 "	2.4 mm	Surface Mount	85 °C	-40 °C	0.05 in	1.27 mm	Slide (Standard)	Flush Recessed	Gull Wing
CUI Devices DS05-127-2-10BK-SMT-TR	Gold	Copper Alloy	25 mA	SPST	Polybutylene Terephthalate (PBT)	24 VDC	2000 Steps			10	0.094 "	2.4 mm	Surface Mount	85 °C	-40 °C	0.05 in	1.27 mm	Slide (Standard)	Flush Recessed	Gull Wing	0.562 in	14.27 mm
CUI Devices DS05-127-2-06BK-SMT-TR	Gold	Copper Alloy	25 mA	SPST	Polybutylene Terephthalate (PBT)	24 VDC	2000 Steps	0.362 in	9.19 mm	6	0.094 "	2.4 mm	Surface Mount	85 °C	-40 °C	0.05 in	1.27 mm	Slide (Standard)	Flush Recessed	Gull Wing
CUI Devices DS05-127-2-04BK-SMT-TR	Gold	Copper Alloy	25 mA	SPST	Polybutylene Terephthalate (PBT)	24 VDC	2000 Steps			4	0.094 "	2.4 mm	Surface Mount	85 °C	-40 °C	0.05 in	1.27 mm	Slide (Standard)	Flush Recessed	Gull Wing	0.262 "	6.65 mm
CUI Devices DS05-127-2-08BK-SMT-TR	Gold	Copper Alloy	25 mA	SPST	Polybutylene Terephthalate (PBT)	24 VDC	2000 Steps			8	0.094 "	2.4 mm	Surface Mount	85 °C	-40 °C	0.05 in	1.27 mm	Slide (Standard)	Flush Recessed	Gull Wing	0.462 in	11.73 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
