R284008004
ActiveRadiall USA, Inc.

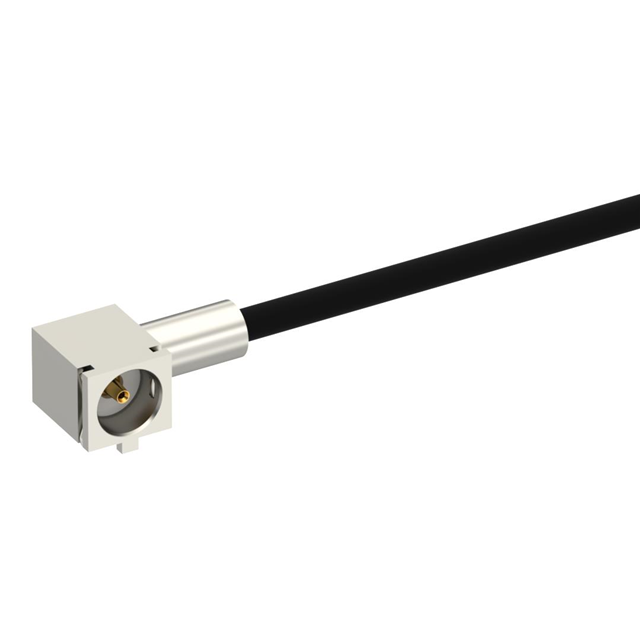

CBL ASSY MMT JACK 7.874"
Deep-Dive with AI
Search across all available documentation for this part.
R284008004
ActiveRadiall USA, Inc.
CBL ASSY MMT JACK 7.874"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R284008004 |
|---|---|
| 1st Connector | MMT Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Brown |
| Frequency - Max [Max] | 8 GHz |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | MMT to Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.04 | |
| 10 | $ 17.37 | |||
| 25 | $ 16.46 | |||
| 50 | $ 16.23 | |||
| 100 | $ 14.32 | |||
| 250 | $ 13.36 | |||
| 500 | $ 13.08 | |||
Description
General part information
R28400 Series
Cable Assembly Coaxial MMT to Cable RG-174 7.874" (200.00mm)
Documents
Technical documentation and resources
No documents available
