19390100526

Active

HARTING Technology Group

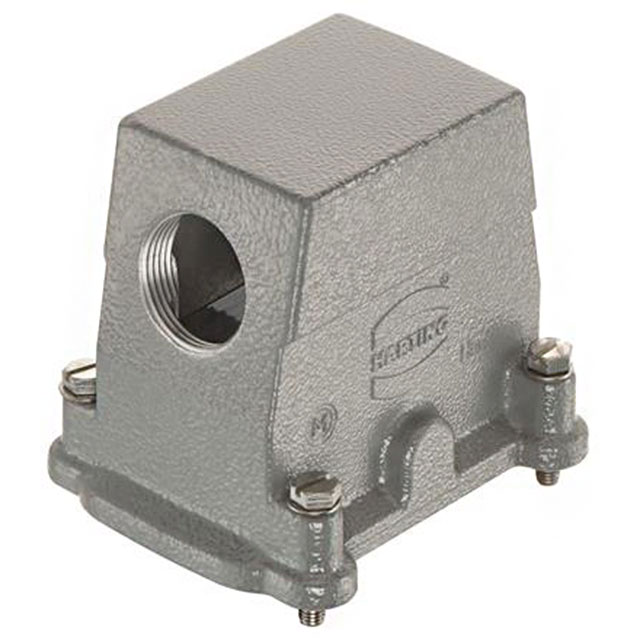

10B HP SCREW DOWN HOOD, SIDE ENTRY, M25

Search across all available documentation for this part.

Active

HARTING Technology Group

10B HP SCREW DOWN HOOD, SIDE ENTRY, M25

Technical Specifications

Parameters and characteristics for this part

Specification	19390100526

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.386 in
Size / Dimension [x]	86 mm
Size / Dimension [y]	2.803 in
Size / Dimension [y]	71.2 mm
Size / Dimension [z]	2.953 in
Size / Dimension [z]	75 mm
Style	Side Entry
Thread Size	M25

Part	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Material	Lock Location	Connector Type	Ingress Protection	Thread Size	Size	Housing Finish
HARTING Technology Group 19390100526	Gray	Side Entry	125 °C	-40 °C	2.803 in	2.953 in	71.2 mm	75 mm	3.386 in	86 mm	Aluminum Die Cast	Screw Locks on Hood	Hood	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	M25	10B	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 10B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
