D3089-99

Active

Harwin Inc.

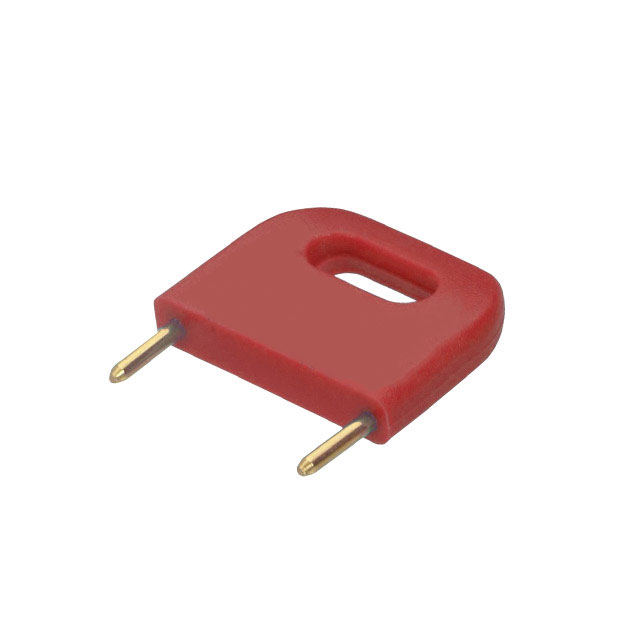

SHUNT 12.70MM PITCH RED

Search across all available documentation for this part.

Active

Harwin Inc.

SHUNT 12.70MM PITCH RED

Technical Specifications

Parameters and characteristics for this part

Specification	D3089-99

Color	Red
Contact Finish	Gold
Current Rating (Amps)	10 A
Gender	Male Pins
Height [z]	12.1 mm
Height [z]	0.476 "
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	12.7 mm
Pitch [x]	0.5 in
Type	Closed Top, Grip

Part	Current Rating (Amps)	Housing Material	Pitch [x]	Pitch [x]	Material Flammability Rating	Color	Height [z]	Height [z]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Type	Contact Finish
Harwin Inc. D3089-99	10 A	Polybutylene Terephthalate (PBT)	12.7 mm	0.5 in	UL94 V-0	Red	12.1 mm	0.476 "	1 x 2	2	Male Pins	Closed Top Grip	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 x 2) Position Shunt Connector Red Closed Top, Grip 0.500" (12.70mm) Gold
