HRM-516(40)
ActiveHirose Electric USA, Inc.

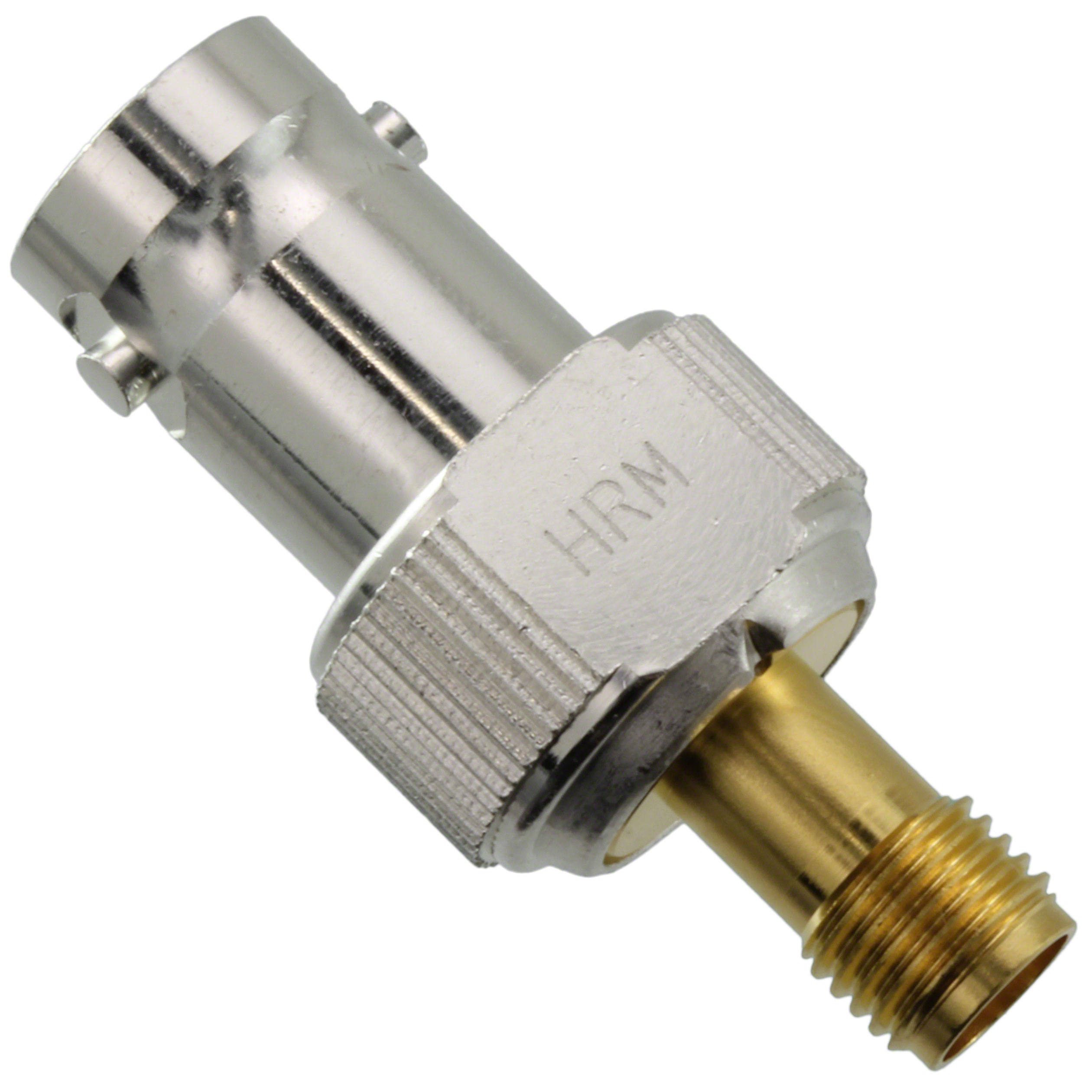

CONN ADAPT BNC JACK TO SMA JACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HRM-516(40)
ActiveHirose Electric USA, Inc.
CONN ADAPT BNC JACK TO SMA JACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-516(40) |
|---|---|
| Adapter Series | BNC to SMA |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock, Threaded |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 46.15 | |
| 10 | $ 40.41 | |||
| 25 | $ 38.67 | |||
| 50 | $ 37.42 | |||
| 125 | $ 36.17 | |||
| 250 | $ 34.18 | |||
Description
General part information
HRM-516 Series
Adapter Coaxial Connector BNC Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
