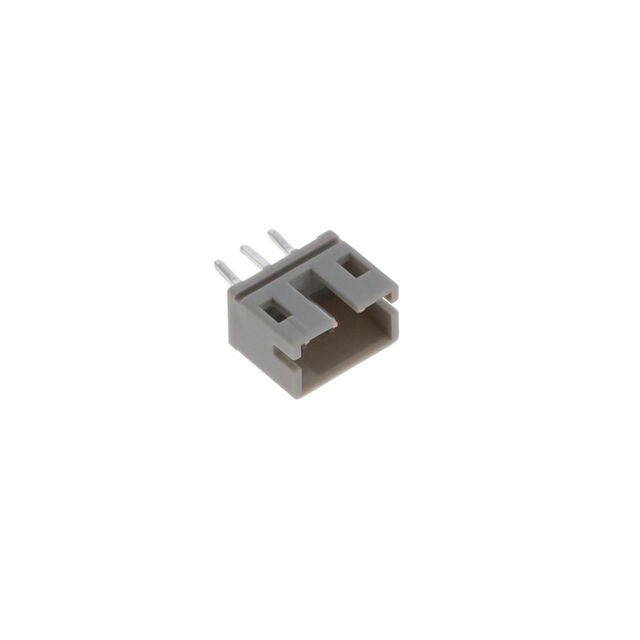

B3B-PH-KL

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 3POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B3B-PH-KL

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Gray
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Insulation Color	Contact Finish - Post	Insulation Material	Voltage Rating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Material	Number of Rows	Material Flammability Rating	Style	Number of Positions Loaded	Current Rating (Amps)	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Mounting Type	Fastening Type	Shrouding	Overall Contact Length [x]	Overall Contact Length	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating
JST Sales America Inc. B3B-PH-KL	Gray	Tin	Polyamide (PA66) Nylon 6/6	100 V	0.134 in	3.4 mm	Square	Copper Alloy	1	UL94 V-0	Board to Cable/Wire	All	2 A	0.079 in	2 mm	Press-Fit Solder	Male Pin	Header	-25 °C	85 °C	6 mm	0.236 in	Through Hole	Detent Lock	Shrouded - 4 Wall
JST Sales America Inc. B3B-PH-K-S	Natural	Tin	Polyamide (PA66) Nylon 6/6	100 V	0.134 in	3.4 mm	Square	Brass	1	UL94 V-0	Board to Cable/Wire	All	2 A	0.079 in	2 mm	Press-Fit Solder	Male Pin	Header	-25 °C	85 °C	6 mm	0.236 in	Through Hole	Detent Lock	Shrouded - 4 Wall	0.333 in	8.45 mm	8 mm	0.13 in	3.3 mm
JST Sales America Inc. B3B-PH-K-S-GW	Natural	Tin-Lead	Polyamide (PA66) Nylon 6/6	100 V	0.134 in	3.4 mm	Square	Brass	1	UL94 V-0	Board to Cable/Wire	All	2 A	0.079 in	2 mm	Press-Fit Solder	Male Pin	Header	-25 °C	85 °C	6 mm	0.236 in	Through Hole	Detent Lock	Shrouded - 4 Wall	0.333 in	8.45 mm	8 mm	0.13 in	3.3 mm	Tin-Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 3 position 0.079" (2.00mm)
