9WV0924P1H001

Active

Sanyo Denki America Inc.

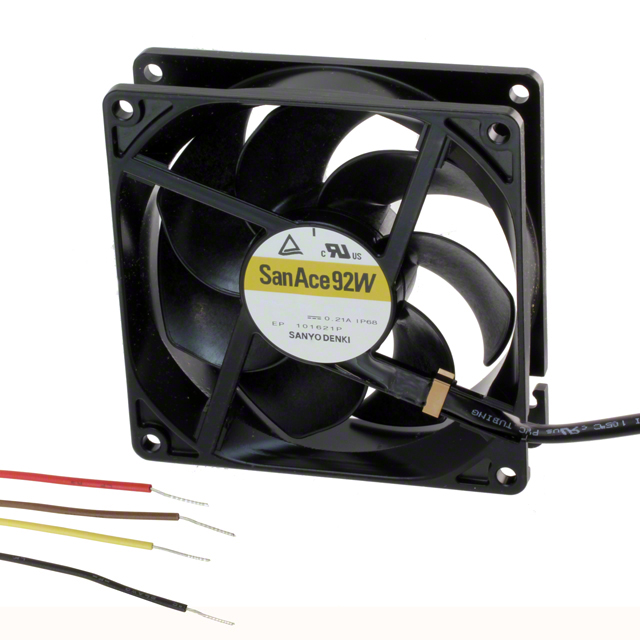

FAN AXIAL 92X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 92X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9WV0924P1H001

Air Flow	178 CFM
Air Flow	4.98 m³/min
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	64 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	38.4 W
RPM	8500 RPM
Static Pressure	385 Pa
Static Pressure	1.55 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	20.4 VDC
Weight	265.81 g
Weight	0.586 lb
Width [y]	38 mm

Part	Material - Frame	Current Rating (Amps)	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Approval Agency	Termination	Weight	Weight	Ingress Protection	Voltage - Rated	Fan Type	Static Pressure	Static Pressure	Noise	Width [y]	Bearing Type	Features	RPM	Voltage Range [Max]	Voltage Range [Min]	Material - Blade
Sanyo Denki America Inc. 9WV0924P1H001	Plastic	1.6 A	178 CFM	4.98 m³/min	60 °C	-20 °C	-20 C	60 °C	38.4 W	CSA TUV UL	4 Wire Leads	265.81 g	0.586 lb	IP68 - Dust Tight Waterproof	24 VDC	Tubeaxial	385 Pa	1.55 in H2O	64 dB(A)	38 mm	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	8500 RPM	26.4 VDC	20.4 VDC	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 178.0 CFM (4.98mł/min) 4 Wire Leads
