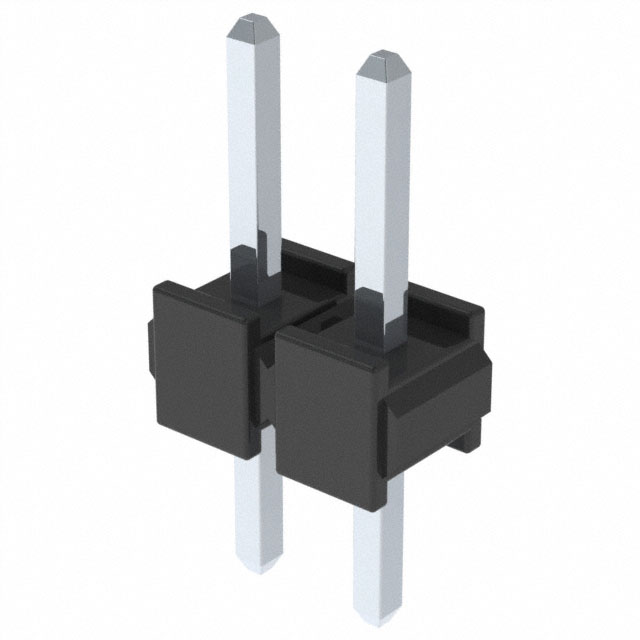

XG8S-0241

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XG8S-0241

Active

Omron Electronics Inc-EMC Div

CONN HEADER VERT 2POS 2.54MM

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XG8S-0241

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	4.3 mm
Contact Length - Mating [x]	0.169 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass, Nickel
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	9.8 mm
Overall Contact Length	0.386 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	300 VDC

XG8S Series

Part	Termination	Number of Positions	Style	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Insulation Material	Shrouding	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Contact Material	Voltage Rating	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)
Omron Electronics Inc-EMC Div XG8S-0631	Solder	6	Board to Board Cable	Male Pin	9.8 mm	0.386 in	0.118 in	3 mm	4.3 mm	0.169 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.1 in	2.54 mm	Through Hole	105 ░C	-55 °C	1	UL94 V-0	Header	All	Gold	Brass Nickel	300 VDC	Gold	0.098 in	2.5 mm	0.15 µm	5.9 µin	Push-Pull	Black	0.15 µm	5.9 µin	2 A
Omron Electronics Inc-EMC Div XG8S-0331	Solder		Board to Board Cable	Male Pin	9.8 mm	0.386 in	0.118 in	3 mm	4.3 mm	0.169 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.1 in	2.54 mm	Through Hole	105 ░C	-55 °C	1	UL94 V-0	Header	All	Gold	Brass Nickel	300 VDC	Gold	0.098 in	2.5 mm	0.15 µm	5.9 µin	Push-Pull	Black	0.15 µm	5.9 µin	2 A
Omron Electronics Inc-EMC Div XG8S-0241	Solder	2	Board to Board Cable	Male Pin	9.8 mm	0.386 in	0.118 in	3 mm	4.3 mm	0.169 in	Square	Polybutylene Terephthalate (PBT) Glass Filled	Unshrouded	0.1 in	2.54 mm	Through Hole	105 ░C	-55 °C	1	UL94 V-0	Header	All	Tin	Brass Nickel	300 VDC		0.098 in	2.5 mm			Push-Pull	Black			2 A
