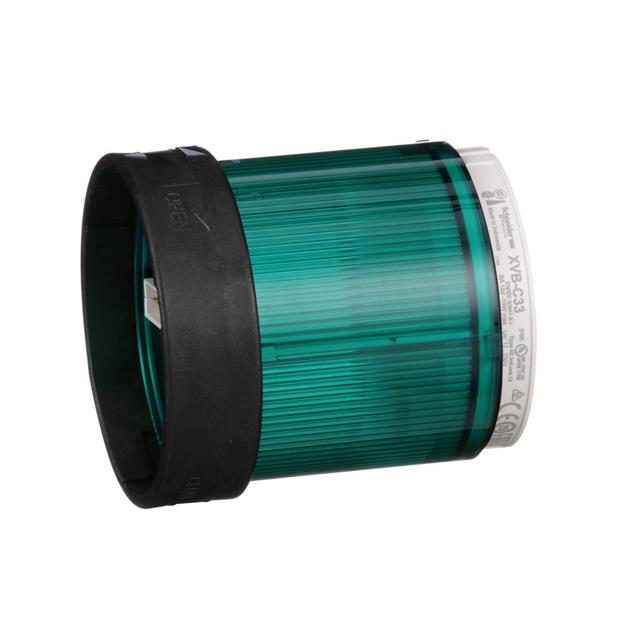

XVBC33
ActiveSQUARE D BY SCHNEIDER ELECTRIC
BEACON, HARMONY XVB, GREEN, STEADY, 10W, IP65, 70MM DIA., 63MM EXT. DEPTH
Deep-Dive with AI
Search across all available documentation for this part.
XVBC33
ActiveSQUARE D BY SCHNEIDER ELECTRIC
BEACON, HARMONY XVB, GREEN, STEADY, 10W, IP65, 70MM DIA., 63MM EXT. DEPTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XVBC33 |
|---|---|
| Function - Lighting | Steady |
| Ingress Protection | IP66, IP65 |
| Light Color | Green |
| Number of Stacks | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Screw Terminal |
| Type | Complete Unit |
| Voltage - Supply | 250 VDC |
XVBC3 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Light Color | Type | Function - Lighting | Voltage - Supply | Number of Stacks | Ingress Protection | Termination Style |
|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Orange | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Yellow | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Clear | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Green | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Red | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
SQUARE D BY SCHNEIDER ELECTRIC | 70 °C | -25 °C | Complete Unit | Steady | 250 VDC | 1 | IP65 IP66 | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
XVBC3 Series
This Harmony XVB beacon is a visual signalling unit for indicating (with 360° visibility and visible at a distance) the various states of operation for a device or installation. Examples include start, stop machine, no material, call technical staff and fault signalling.
Documents
Technical documentation and resources
