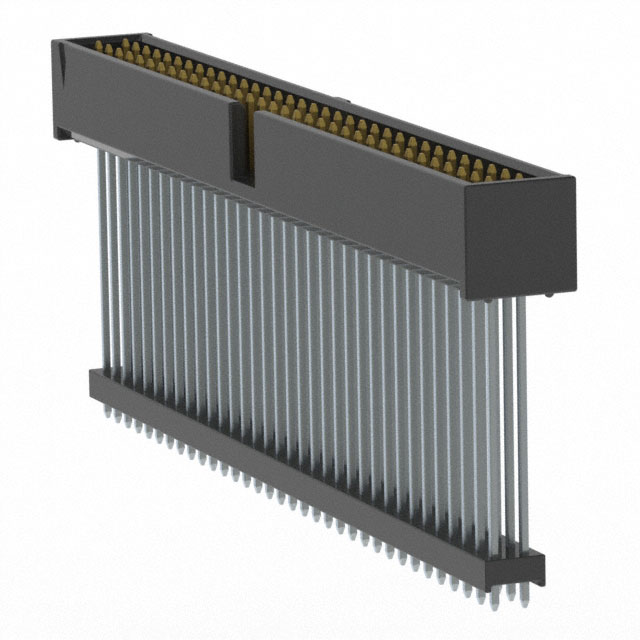

ZSS-134-08-L-D-1240

Active

Samtec Inc.

CONN HDR .100" 68POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR .100" 68POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-134-08-L-D-1240

null

Part	Connector Type	Shrouding	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Contact Shape	Insulation Color	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Material	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Positions	Current Rating (Amps)	Fastening Type	Termination	Contact Type
Samtec Inc. ZSS-134-02-T-D-640	Elevated Header	Shrouded - 4 Wall	0.09 "	2.29 mm	All	6.35 mm	0.25 in	Square	Black	Keying Slot	2.54 mm	0.1 in	UL94 V-0	Through Hole	0.1 in	2.54 mm	Polyester Glass Filled	Board to Board Cable	105 ░C	-55 °C	2	Phosphor Bronze	16.26 mm	0.64 in	0.73 in	18.54 mm	Tin	68	3 A	Push-Pull	Solder	Male Pin
Samtec Inc. ZSS-134-08-L-D-1240

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.99

General part information

Connector Header position
