MS2H-1-G
ActiveAdam Tech

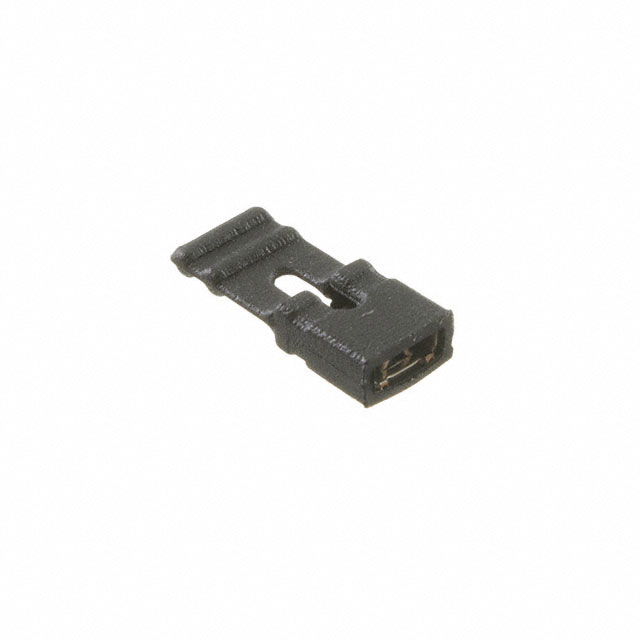

MINI SHUNT 2.0MM 2P PULL HANDLE
Deep-Dive with AI
Search across all available documentation for this part.
MS2H-1-G
ActiveAdam Tech
MINI SHUNT 2.0MM 2P PULL HANDLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS2H-1-G |
|---|---|
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Current Rating (Amps) | 2 A |
| Gender | Female Sockets |
| Height [z] | 0.374 in |
| Height [z] | 9.5 mm |
| Material Flammability Rating | UL94 V-2 |
| Number of Positions or Pins (Grid) [custom] | 1 x 2 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Type | Closed Top, Grip |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.14 | |
| 10 | $ 0.11 | |||
| 25 | $ 0.10 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.07 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.06 | |||
Description
General part information
MS2H Series
2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.079" (2.00mm) Gold
