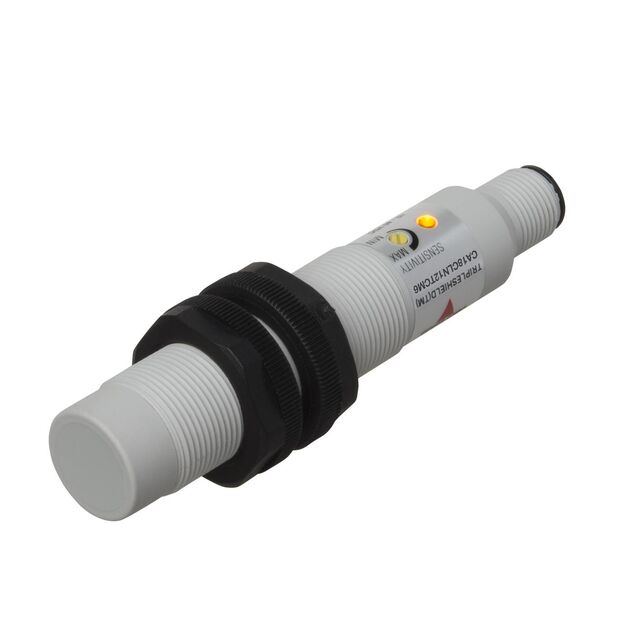

CA18CLN12TCM6
ActiveCARLO GAVAZZI
SENSOR PROX CAPACITIVE 12MM CYL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CA18CLN12TCM6
ActiveCARLO GAVAZZI
SENSOR PROX CAPACITIVE 12MM CYL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CA18CLN12TCM6 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 4, NEMA 13, NEMA 1, IP67, NEMA 6, NEMA 3 |
| Material - Body | Plastic |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Output Type | SCR-NC, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Response Frequency | 10 Hz |
| Sensing Distance | 0.472 in |
| Sensing Distance | 12 mm |
| Sensor Type | Capacitive |
| Shielding | Shielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 250 VAC |
| Voltage - Supply [Min] | 20 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 276.17 | |
Description
General part information
CA18CLN12 Series
SENSOR PROX CAPACITIVE 12MM CYL
