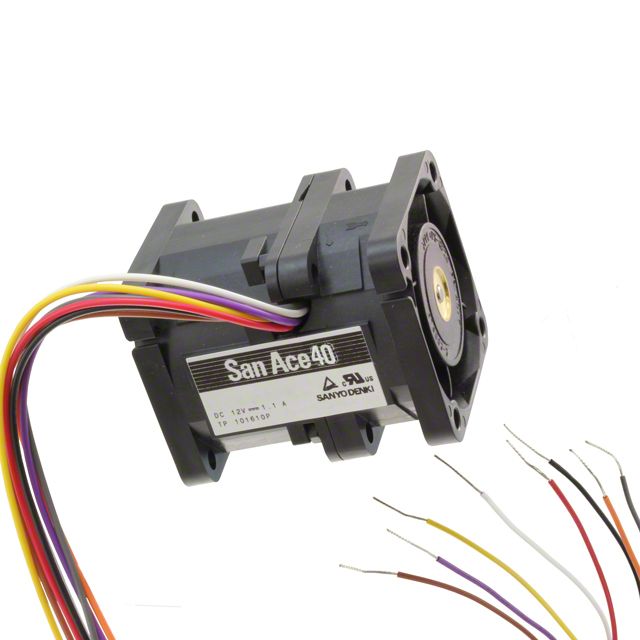

9CRD0412P5H03

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Bearing Type	Fan Type	RPM [custom]	RPM [custom]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Material - Blade	Power (Watts)	Static Pressure	Static Pressure	Noise	Weight	Weight	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Approval Agency	Voltage Range [Max]	Voltage Range [Min]	Width [x]	Air Flow	Air Flow
Sanyo Denki America Inc. 9CRD0412P5M03	4 Wire Leads per Fan	Ball	Tubeaxial (Dual)	14000 RPM	9300 RPM	40 mm	Square	40 mm	-20 °C	70 °C	-20 C	70 °C	12 VDC	Plastic	6.24 W	1.45 in H2O	361.2 Pa	54 dB	90.26 g	0.199 lb	40000 Hrs	Plastic	0.52 A	cURus TUV	13.2 VDC	10.8 VDC	56 mm	0.644 m³/min	23 CFM
Sanyo Denki America Inc. 9CRD0412P5H03	4 Wire Leads per Fan	Ball	Tubeaxial (Dual)	15000 RPM	10000 RPM	40 mm	Square	40 mm	-20 °C	70 °C	-20 C	70 °C	12 VDC	Plastic	7.2 W	1.65 in H2O	411 Pa	56 dB	90.26 g	0.199 lb	40000 Hrs	Plastic	600 mA	cURus TUV	13.2 VDC	10.8 VDC	56 mm	0.692 mł/min	24.7 CFM
Sanyo Denki America Inc. 9CRD0412P5G03	4 Wire Leads per Fan	Ball	Tubeaxial (Dual)	16700 RPM	11250 RPM	40 mm	Square	40 mm	-20 °C	70 °C	-20 C	70 °C	12 VDC	Plastic	10.8 W	2.01 in H2O	500.7 Pa	58 dB(A)	90.26 g	0.199 lb	40000 Hrs	Plastic	900 mA	cURus TUV	13.2 VDC	10.8 VDC	56 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 24.7 CFM (0.692m³/min) 4 Wire Leads per Fan
