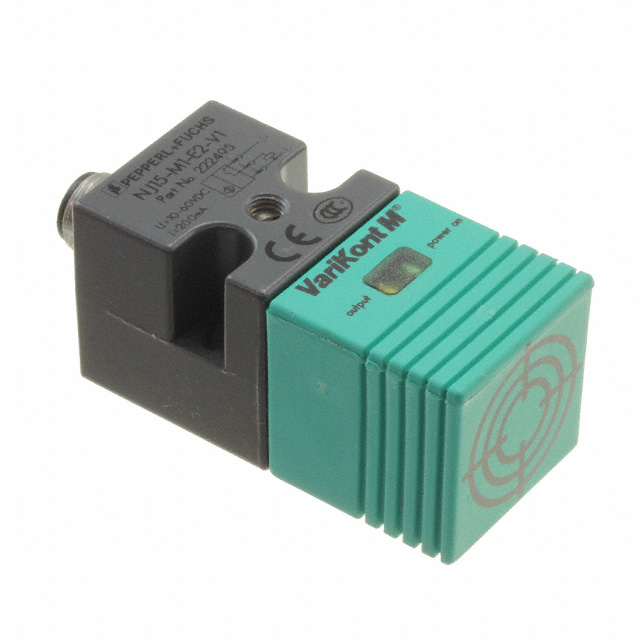

NJ15-M1-E2-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 15 MM, PNP, 10 VDC TO 60 VDC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, M12, 15 MM, PNP, 10 VDC TO 60 VDC

Technical Specifications

Parameters and characteristics for this part

Specification	NJ15-M1-E2-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Module
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	10 VDC

Part	Sensor Type	Sensing Distance	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Package / Case	Ingress Protection	Shielding	Output Type	Material - Body	Termination Style
PEPPERL+FUCHS NJ15-M1K-A2	Inductive	15 mm	0.591 "	10 VDC	60 V	70 °C	-25 °C	LED	Module	IP67	Unshielded	4-Wire PNP-NC/NO	Polybutylene Terephthalate (PBT)
PEPPERL+FUCHS NJ15-M1-E2-V1	Inductive	15 mm	0.591 "	10 VDC	60 V	70 °C	-25 °C	LED	Module	IP67	Unshielded	PNP-NO 3-Wire	Polybutylene Terephthalate (PBT)	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, M12, 15 MM, PNP, 10 VDC TO 60 VDC
