000-91100

Active

Amphenol RF

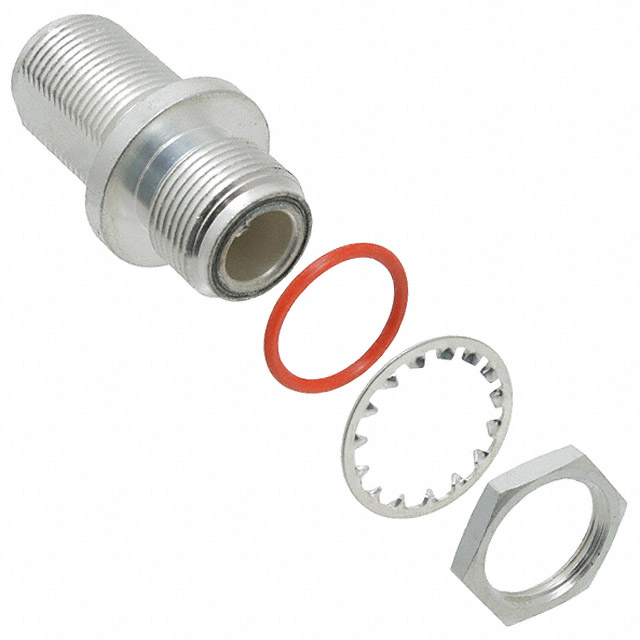

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST PANEL MOUNT F/F SILVER BAG

Search across all available documentation for this part.

Active

Amphenol RF

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST PANEL MOUNT F/F SILVER BAG

Technical Specifications

Parameters and characteristics for this part

Specification	000-91100

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Frequency - Max [Max]	Convert From (Adapter End)	Impedance	Mounting Feature	Conversion Type	Center Gender	Mating Cycles	Center Contact Plating	Style	Convert To (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Adapter Type	Adapter Series	Center Contact Material	Body Material	Includes	Dielectric Material
Amphenol RF 000-91100	11 GHz	Female Socket N Jack	50 Ohms	Bulkhead	Same Series	Female to Female	500	Silver	Straight	Female Socket N Jack	-65 ░C	165 °C	Silver	Jack to Jack	N to N	Beryllium Copper	Brass	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
