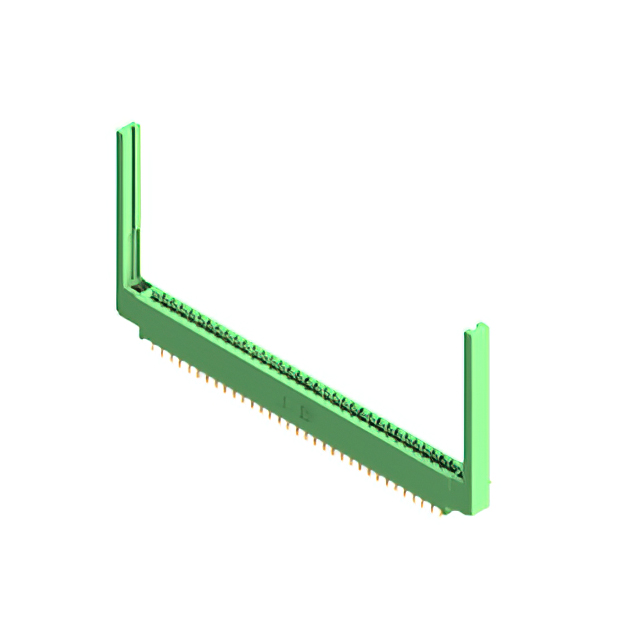

337-066-559-868
ActiveEDAC Inc.
3.96MM 66P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-066-559-868 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 66 |
| Number of Positions/Bay/Row [custom] | 33 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
337-066 Series
...
| Part | Color | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Gender | Contact Type | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Rows | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Read Out | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Green | Non Specified - Dual Edge | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Wire Wrap | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |
EDAC Inc. | Green | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |||
EDAC Inc. | Green | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole Right Angle | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |||
EDAC Inc. | Green | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Wire Wrap | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | Green | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Board Edge Straddle Mount | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |||
EDAC Inc. | Green | Non Specified - Dual Edge | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Board Edge Straddle Mount | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Card Extender |
EDAC Inc. | Green | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole Right Angle | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Card Guides | ||
EDAC Inc. | Green | Non Specified - Dual Edge | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | |
EDAC Inc. | Green | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Board Edge Straddle Mount | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Card Extender | ||
EDAC Inc. | Green | Non Specified - Dual Edge | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Solder | Female | Cantilever | 66 | 33 | 2 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | Gold | -40 °C | 105 ░C | Through Hole | 2 | 10 Áin | 0.25 Ám | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
337-066 Series
66 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
