MPL-SE5040-220

Active

MONOLITHIC POWER SYSTEMS (MPS)

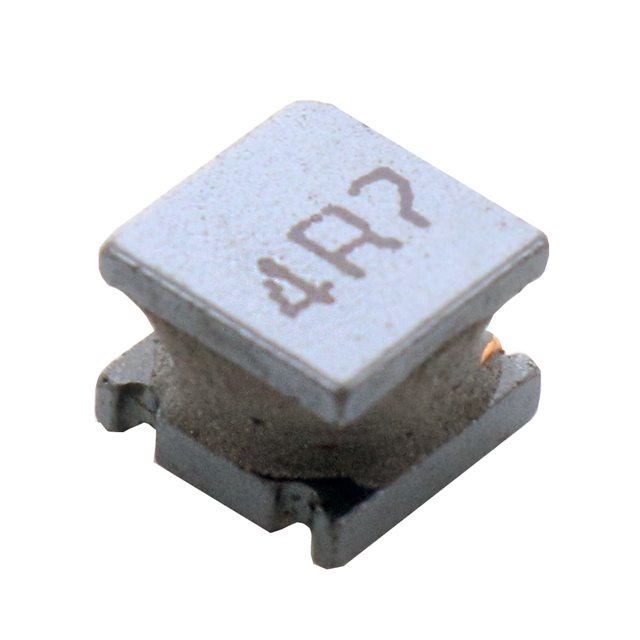

FIXED IND 22UH 2.1A 124 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

MPL-SE5040-220

Active

MONOLITHIC POWER SYSTEMS (MPS)

FIXED IND 22UH 2.1A 124 MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MPL-SE5040-220

Current - Saturation (Isat)	2.4 A
Current Rating (Amps)	2.1 A
DC Resistance (DCR)	124 mOhm
Height - Seated (Max) [Max]	0.157 in
Height - Seated (Max) [Max]	4 mm
Inductance	22 µH
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard, 2 Lead
Shielding	Shielded
Size / Dimension [x]	4.9 mm
Size / Dimension [x]	0.193 in
Size / Dimension [y]	0.193 in
Size / Dimension [y]	4.9 mm

MPL-SE5040 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	DC Resistance (DCR)	Shielding	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-R47	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	470 nH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	7.3 mOhm	Shielded	16 A	8 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-4R7	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	4.7 ÁH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	33 mOhm	Shielded	5 A	4.3 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-150	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	15 µH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	83 mOhm	Shielded	2.9 A	2.5 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-3R3	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	3.3 µH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	22 mOhm	Shielded	6.4 A	5.2 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-6R8	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	6.8 µH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	45 mOhm	Shielded	4.6 A	3.5 A	100 kHz
MONOLITHIC POWER SYSTEMS (MPS) MPL-SE5040-220	0.193 in	4.9 mm	0.193 in	4.9 mm	Surface Mount	22 µH	125 °C	-40 °C	0.157 in	4 mm	Nonstandard 2 Lead	124 mOhm	Shielded	2.4 A	2.1 A	100 kHz
