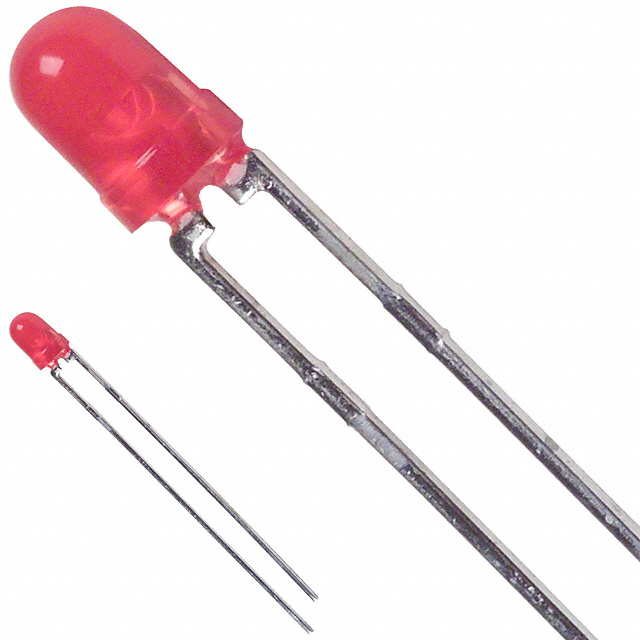

5219216F
ActiveDIALIGHT
LED RED DIFFUSED 3MM T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5219216F
ActiveDIALIGHT
LED RED DIFFUSED 3MM T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5219216F |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 10 mA |
| Height (Max) [Max] [z] | 6 mm |
| Lens Color | Red |
| Lens Size [diameter] | 3 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 8.7 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | 3 mm |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak | 635 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 0.70 | |||
| 100 | $ 0.48 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| 2000 | $ 0.34 | |||
| 5000 | $ 0.32 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.29 | |||
Description
General part information
5219216 Series
Red 625nm LED Indication - Discrete 2V Radial
