LQH44PH101MPRL

Active

Murata Power Solutions Inc.

INDUCTOR, 100UH, SHIELDED, 0.4A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN LQH44PH101MPRx Datasheet +1

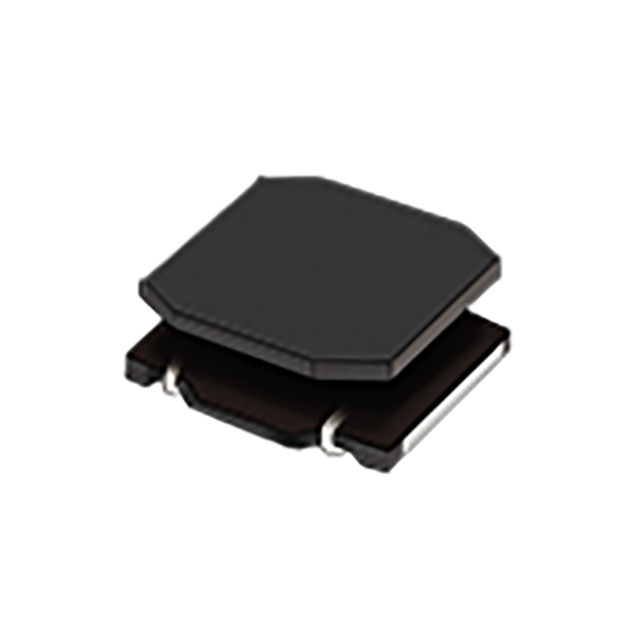

LQH44PH101MPRL

Active

Murata Power Solutions Inc.

INDUCTOR, 100UH, SHIELDED, 0.4A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN LQH44PH101MPRx Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH44PH101MPRL

Current - Saturation (Isat)	460 mA
Current Rating (Amps)	400 mA
DC Resistance (DCR) [Max]	1.56 Ohm
Frequency - Self Resonant	6 MHz
Height - Seated (Max) [Max]	0.071 "
Height - Seated (Max) [Max]	1.8 mm
Inductance	100 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	1616 (4040 Metric)
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	4 mm
Size / Dimension [x]	0.157 "
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Tolerance	20 %
Type	Wirewound, Drum Core

LQH44PH Series

Part	Material - Core	Inductance Frequency - Test	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	Ratings	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Frequency - Self Resonant	Type	Current Rating (Amps)	DC Resistance (DCR)	DC Resistance (DCR) [Max]
Murata Power Solutions Inc. LQH44PH2R2MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	3.3 A	AEC-Q200	20 %	0.071 "	1.8 mm	2.2 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	55 MHz	Drum Core Wirewound	2.4 A
Murata Power Solutions Inc. LQH44PH3R3MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	2.3 A	AEC-Q200	20 %	0.071 "	1.8 mm	3.3 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	40 MHz	Drum Core Wirewound	2 A	66 mOhm
Murata Power Solutions Inc. LQH44PH1R0MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	4.3 A	AEC-Q200	20 %	0.071 "	1.8 mm	1 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	85 MHz	Drum Core Wirewound	3.2 A		30 mOhm
Murata Power Solutions Inc. LQH44PH150MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	1.3 A	AEC-Q200	20 %	0.071 "	1.8 mm	15 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	18 MHz	Drum Core Wirewound	1.1 A		240 mOhm
Murata Power Solutions Inc. LQH44PH100MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	1.45 A	AEC-Q200	20 %	0.071 "	1.8 mm	10 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	25 MHz	Drum Core Wirewound	1.25 A	180 mOhm
Murata Power Solutions Inc. LQH44PH221MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C		AEC-Q200	20 %	0.071 "	1.8 mm	220 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	4 MHz	Drum Core Wirewound	0.28 A	3.78 Ohm
Murata Power Solutions Inc. LQH44PH151MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	400 mA	AEC-Q200	20 %	0.071 "	1.8 mm	150 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	5 MHz	Drum Core Wirewound	0.33 A		2.64 Ohm
Murata Power Solutions Inc. LQH44PH220MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	1.05 A	AEC-Q200	20 %	0.071 "	1.8 mm	22 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	17 MHz	Drum Core Wirewound	900 mA		348 mOhm
Murata Power Solutions Inc. LQH44PH101MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	460 mA	AEC-Q200	20 %	0.071 "	1.8 mm	100 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	6 MHz	Drum Core Wirewound	400 mA		1.56 Ohm
Murata Power Solutions Inc. LQH44PH330MPRL	Ferrite	100 kHz	Shielded	-40 °C	105 ░C	880 mA	AEC-Q200	20 %	0.071 "	1.8 mm	33 µH	0.157 in	4 mm	4 mm	0.157 "	Surface Mount	1616 (4040 Metric)	12 MHz	Drum Core Wirewound	0.74 A		552 mOhm
