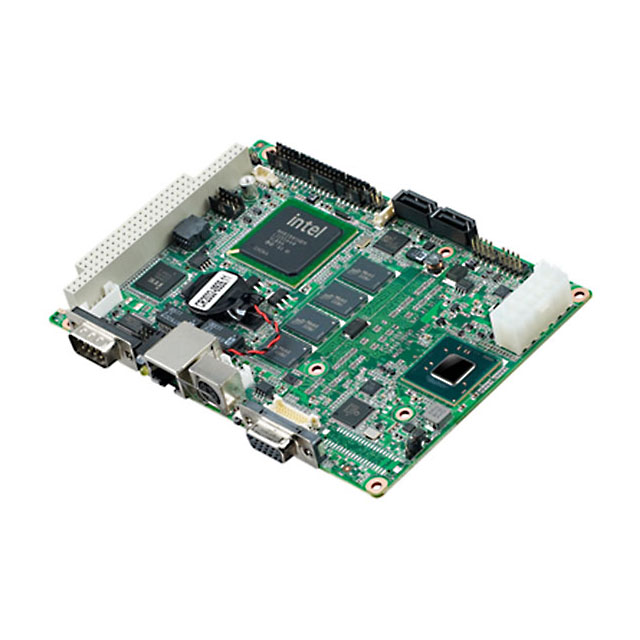

PCM-9389N-S6A1E
ObsoleteAdvantech Corp
SBC 1.66GHZ 1 CORE 2GB/1GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCM-9389N-S6A1E
ObsoleteAdvantech Corp
SBC 1.66GHZ 1 CORE 2GB/1GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCM-9389N-S6A1E |
|---|---|
| Cooling Type | Heat Sink |
| Core Processor | Intel Atom N455 |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Expansion Site/Bus | LPC, PC/104 |
| Form Factor | 3.5 in |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 8.15 W |
| RAM Capacity/Installed | 1 GB, 2 GB |
| RS-232 (422, 485) | 4 |
| Size / Dimension [x] | 5.7 " |
| Size / Dimension [x] | 144.78 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Speed | 1.66 GHz |
| Storage Interface | SATA2, CompactFlash |
| USB | USB 2.0 (4) |
| Video Outputs | TTL, VGA, LVDS |
| Watchdog Timer | True |
PCM-9389 Series
| Part | Video Outputs | Watchdog Timer | Cooling Type | Storage Interface | Core Processor | Power (Watts) | Form Factor | Speed | Ethernet | RS-232 (422, 485) | Expansion Site/Bus | Operating Temperature [Max] | Operating Temperature [Min] | Digital I/O Lines | USB | RAM Capacity/Installed | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Number of Cores |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Advantech Corp | LVDS TTL VGA | Heat Sink | CompactFlash SATA2 | Intel Atom N455 | 8.15 W | 3.5 in | 1.66 GHz | 10 Mbps 100 Mbps 1000 Mbps | 4 | LPC PC/104 | 60 °C | 0 °C | 8 | USB 2.0 (4) | 1 GB 2 GB | 101.6 mm | 4 " | 5.7 " | 144.78 mm | 1 | |
Advantech Corp | LVDS TTL VGA | Heat Sink | CompactFlash SATA2 | Intel Atom N455 | 8.15 W | 3.5 in | 1.66 GHz | 10 Mbps 100 Mbps 1000 Mbps | 4 | LPC PC/104 | 80 C | -20 C | 8 | USB 2.0 (4) | 1 GB 2 GB | 101.6 mm | 4 " | 5.7 " | 144.78 mm | 1 | |
Advantech Corp | LVDS TTL VGA | Heat Sink | CompactFlash SATA2 | Intel Atom N455 | 8.15 W | 3.5 in | 1.66 GHz | 10 Mbps 100 Mbps 1000 Mbps | 4 | LPC PC/104 | 60 °C | 0 °C | 8 | USB 2.0 (4) | 1 GB 2 GB | 101.6 mm | 4 " | 5.7 " | 144.78 mm | 1 | |
Advantech Corp | LVDS TTL VGA | Heat Sink | CompactFlash SATA2 | Intel Atom N455 | 8.15 W | 3.5 in | 1.66 GHz | 10 Mbps 100 Mbps 1000 Mbps | 4 | LPC PC/104 | 85 °C | -40 °C | 8 | USB 2.0 (4) | 1 GB 2 GB | 101.6 mm | 4 " | 5.7 " | 144.78 mm | 1 | |
Advantech Corp | LVDS TTL VGA | Heat Sink | CompactFlash SATA2 | Intel Atom N455 | 8.15 W | 3.5 in | 1.66 GHz | 10 Mbps 100 Mbps 1000 Mbps | 4 | LPC PC/104 | 85 °C | -40 °C | 8 | USB 2.0 (4) | 0 GB 2 GB | 101.6 mm | 4 " | 5.7 " | 144.78 mm | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PCM-9389 Series
Single Board Computer 1.66GHz 1 Core 2GB/1GB RAM Intel Atom N455
