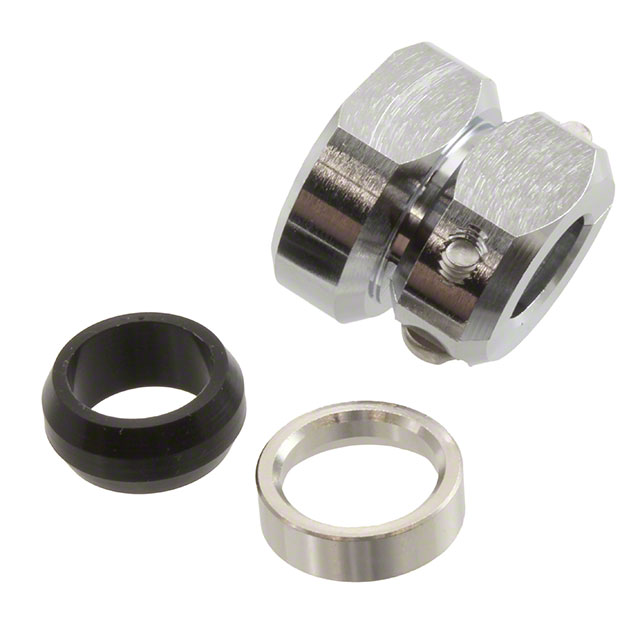

JR13WCC-10(72)

Active

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ13 BLACK M16

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJR-W Series Datasheet Datasheet

JR13WCC-10(72)

Active

Hirose Electric USA, Inc.

CONN CABLE CLAMP SZ13 BLACK M16

Deep-Dive with AI

DocumentsJR-W Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR13WCC-10(72)

Cable Exit	180 °
Cable Opening [custom]	10 mm
Cable Opening [custom]	0.394 in
Color	Black
Diameter - Outside [diameter]	0.787 in
Diameter - Outside [diameter]	20 mm
Features	Clamp Screws, Washer, Gasket
For Use With/Related Products	JR-W and RM-W Series Plug
Includes	2 Screws, 1 Gasket, 1 Cable Clamp, 1 Washer
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Brass, Zinc Alloy, Aluminum Alloy
Plating	Chrome
Shell Size - Insert	13
Thread Size	0.75
Thread Size	M16
Type	Cable Clamp

JR13WCC Series

Part	Material Flammability Rating	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Cable Exit	Material	Includes	Features	Thread Size	Thread Size	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Ingress Protection	For Use With/Related Products	Type	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. JR13WCC-8-A(31)	UL94 V-0	8 mm	0.315 in	13	180 °	Aluminum Alloy Brass	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W Series Plug	Cable Clamp
Hirose Electric USA, Inc. JR13WCC-7(72)				13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W and RM-W Series Plug	Cable Clamp	0.276 in	7 mm
Hirose Electric USA, Inc. JR13WCC-8(71)		8 mm	0.315 in	13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W Series Plug	Cable Clamp
Hirose Electric USA, Inc. JR13WCC-9(32)	UL94 V-0			13	180 °	Brass	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Nickel	0.787 in	20 mm	Silver	IP67 - Dust Tight Waterproof	JR-W Series Plug	Cable Clamp	0.354 in	9 mm
Hirose Electric USA, Inc. JR13WCC-4				13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W Series Plug	Cable Clamp	0.157 in	4 mm
Hirose Electric USA, Inc. JR13WCC-5(72)				13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W and RM-W Series Plug	Cable Clamp	0.197 in	5 mm
Hirose Electric USA, Inc. JR13WCC-7(74)
Hirose Electric USA, Inc. JR13WCC-10(72)				13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W and RM-W Series Plug	Cable Clamp	0.394 in	10 mm
Hirose Electric USA, Inc. JR13WCC-4(72)				13	180 °	Aluminum Alloy Brass Zinc Alloy	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W and RM-W Series Plug	Cable Clamp	0.157 in	4 mm
Hirose Electric USA, Inc. JR13WCC-9(31)	UL94 V-0			13	180 °	Brass	1 Cable Clamp 1 Gasket 1 Washer 2 Screws	Clamp Screws Gasket Washer	0.75	M16	Chrome	0.787 in	20 mm	Black	IP67 - Dust Tight Waterproof	JR-W Series Plug	Cable Clamp	0.354 in	9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.17
		10	$ 8.59
		25	$ 7.77
		50	$ 7.50

Description

General part information

JR13WCC Series

Black Connector Cable Clamp M16x0.75 13

Documents

Technical documentation and resources

JR-W Series Datasheet

Datasheet
