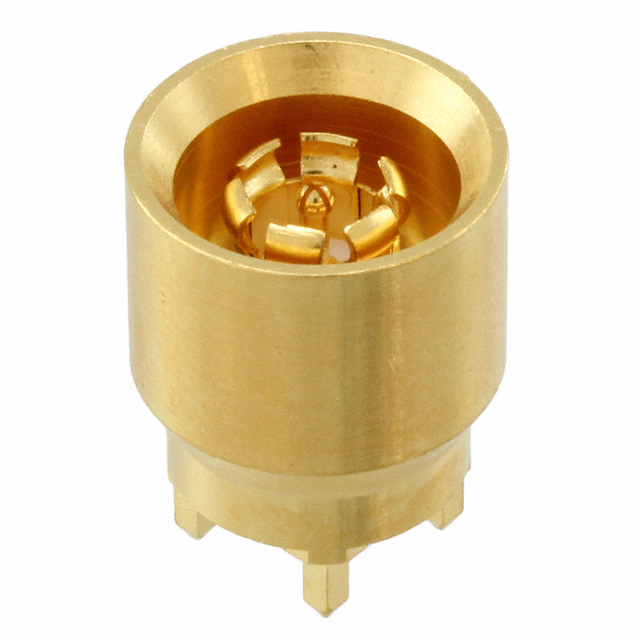

920-255P-51P - 920-255P-51P

920-255P-51P

Active
Amphenol RF

AFI STRAIGHT PCB FULL DETENT PLUG THROUGH HOLE 50 OHM

Deep-Dive with AI

DocumentsAFI Board to Board Spacing ChartTechnical Data Sheet EN+2

Technical Specifications

Parameters and characteristics for this part

Specification920-255P-51P
Body FinishGold
Body MaterialBrass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleAFI
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Frequency - Max [Max]6000 MHz
Housing ColorGold
Impedance50 Ohms
Mounting TypeSurface Mount, Through Hole
Number of Ports1
Operating Temperature [Max]165 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 12.38
10$ 10.97
25$ 10.55
50$ 10.13
100$ 9.56
300$ 8.72
500$ 8.16
1000$ 7.48
NewarkEach 100$ 11.24
250$ 10.49

Description

General part information

920-25 Series

AFI Connector Plug, Male Pin 50 Ohms Surface Mount, Through Hole Solder
